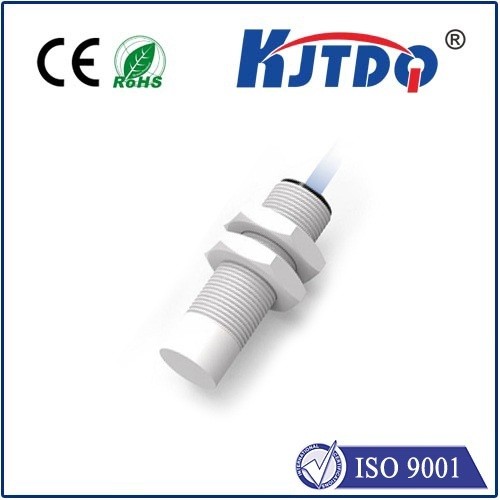

KJT Corrosion-resistant proximity switch is made of an integrated polytetrafluoroethylene shell that is resistant to high pressure and corrosion. Therefore, this series is very suitable for ocean surface pressure and underwater pressure, corrosive liquid working conditions. Oil-resistant, corrosion-resistant, suitable for harsh environments and cleaning equipment.

●Can detect various metal objects	DC 2NO
● With surge, overload, short circuit and reverse polarity protection functions	DC 2NC
●Shell material: PTF	DC 3 NPN NO
● Protection level: IP67(IEC)	DC 3 NPN NC
●Ambient temperature: -25℃~+70℃	DC PNP NO
	DC3 PNP NC
	AC 2 NO
	AC 2 NC

Product Model	KJT-J18NF
Installation method	Non-Flush
Detection distance	8mm
Working temperature	-25℃~+70℃
Specifications	M18*1*55
Operating Voltage	10-36V DC
Ripple	<10%
No-load current	<10mA
Maximum load current	200mA
Voltage drop	≤1.5V
On-off level	1000Hz
Hysteresis	<15(Sr)
Overload protection current	180mA
Short circuit protection	YES
Repeat accuracy	<1.0%(Sr)
Temperature drift	<10%(Sr)
Response time	0.5ms
Connection method	2M PUR lead wire
Protection level	IP67
Sensing surface material	PTFE
Shell Material	PTFE
EMC	RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
