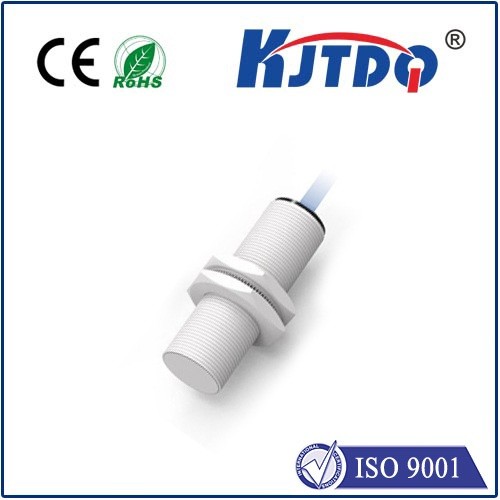

M18 Flush corrosion resistant proximity Sensor

Corrosion resistant proximity sensor

M18 Flush corrosion resistant proximity Sensor

  • Product Type:KJT-J18MNF
  • Installation Method:Flush
  • Detection Distance:5mm
  • Working Voltage:10-36VDC/90-250VAC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PUR lead wire
  • Product Detail

    KJT Corrosion-resistant proximity switch is made of an integrated polytetrafluoroethylene shell that is resistant to high pressure and corrosion. Therefore, this series is very suitable for ocean surface pressure and underwater pressure, corrosive liquid working conditions. Oil-resistant, corrosion-resistant, suitable for harsh environments and cleaning equipment.


●Can detect various metal objects DC 2NO
● With surge, overload, short circuit and reverse polarity protection functions DC 2NC
Shell material: PTF DC 3 NPN NO
● Protection level: IP67(IEC) DC 3 NPN NC
●Ambient temperature: -25℃~+70℃ DC PNP NO

DC3 PNP NC

AC 2 NO

AC 2 NC



1

Product Model
KJT-J18MNF
Installation method Flush
Detection distance
5mm
Working temperature
-25~+70℃
Specifications M18*1*55
Operating Voltage
10-36V DC

Ripple

<10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <1.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method 2M PUR lead wire
Protection level IP67
Sensing surface material PTFE
Shell Material PTFE
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

4b92b451c1f27814eaf9b5837340e880

3

接线图

4


9
