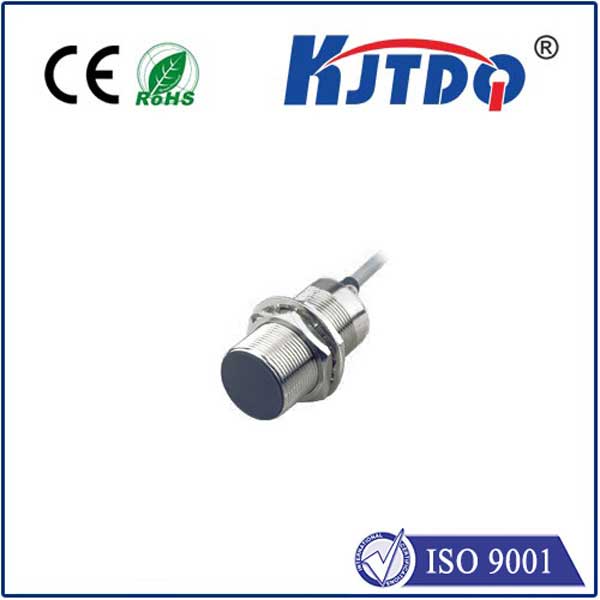

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size	J30*78mm
Mounting	Shielded
Sensing Distance SN [mm]	10mm
Housing material	Brass nickel plated
Indicator	With LED
Operating voltage	10-36VDC
Output	NO/NC
Ripple	<10%
No Load Current	<10mA
Max.Load Current	3-100mA
Leakage Current	<0.8mA
Voltage Drop	<6V
Switching Frequency	200 Hz
Response Time	1.5ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<5%(Sr)
Protection Degree	IP67
Operating Temperature	-25℃-+120℃
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	400mA
Connection	With M12 4 pin connector

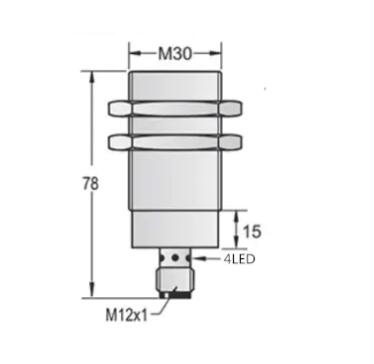

Product Size

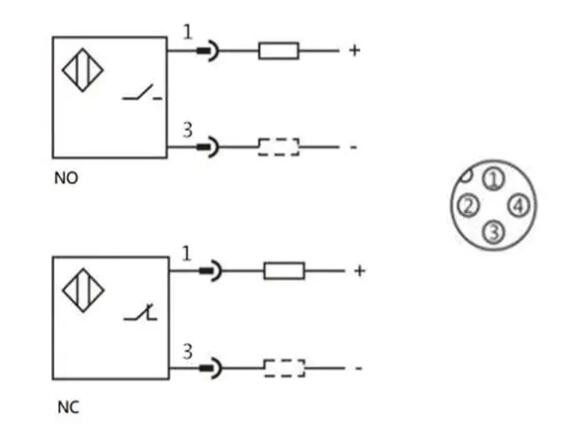

Wiring diagram
