Nanjing KJT Electric Co,.LTD

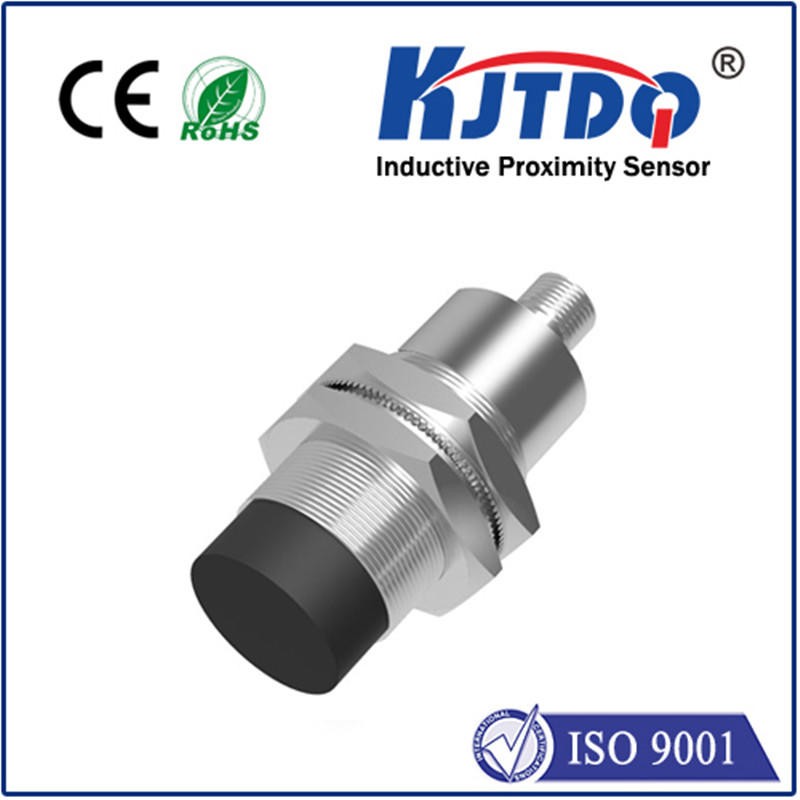

INDUCTIVE PROXIMITY SENSOR
KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.
Technical parameter
Size
J30*78mm
Mounting
Unshielded
Sensing Distance SN [mm]
15mm
Housing material
Brass nickel plated
Indicator
With LED
Operating voltage
10-36VDC
Output
PNP/NPN NO/NC
Ripple
<10%
No Load Current
<10mA
Max.Load Current
200mA
Leakage Current
<0.01mA
Voltage Drop
<1.5V
Switching Frequency
150 Hz
Response Time
1ms
Switching Hysteresis
<15%(Sr)
Repeat Accuracy
<3%(Sr)
Protection Degree
IP67
Operating Temperature
-40℃-+80℃
Temperature Drift
<10%(Sr)
Short Circuit Protection
YES
Overload Trip Point
200mA
Connection
With M12 4 pin connector

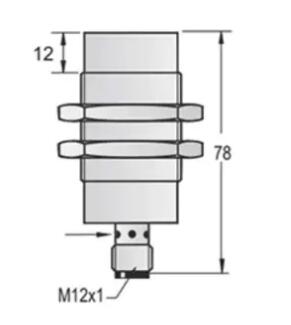

Product Size

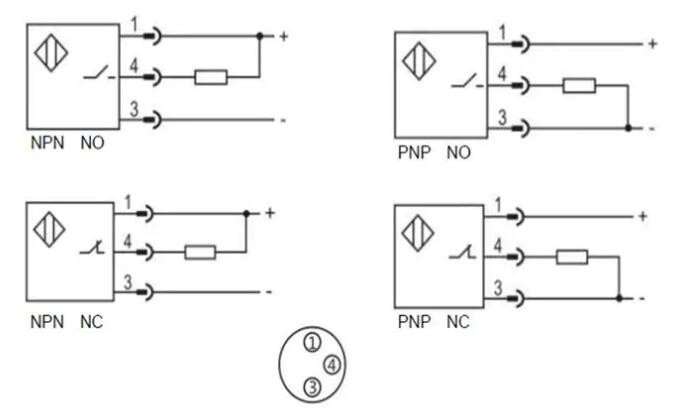

Wiring diagram
