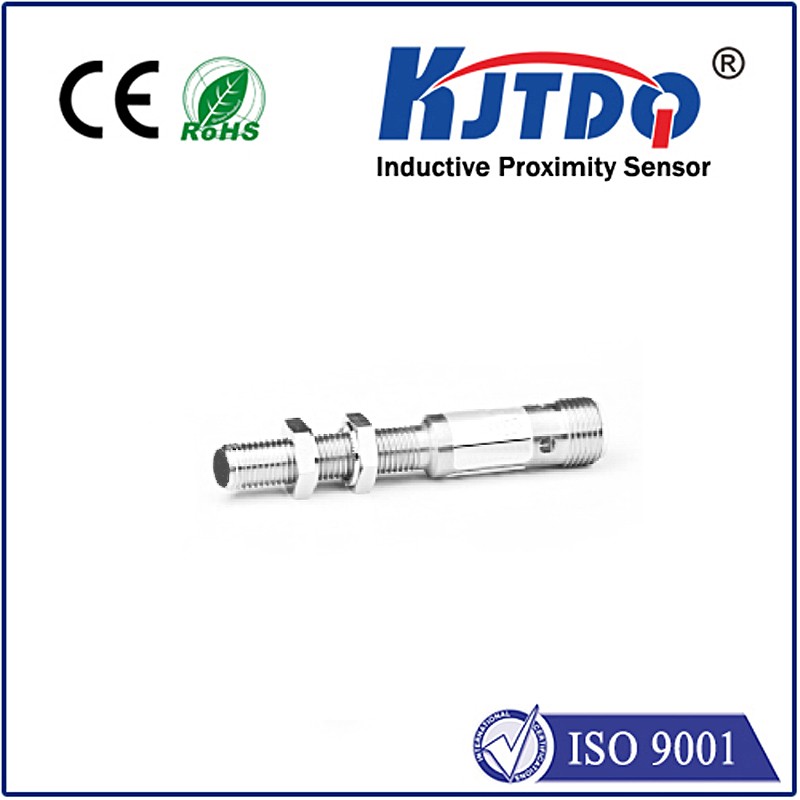

M8 Inductive Proximity Sensor equivalent to E2E-X2D2-M1TGJ-U-Z 0.3M

Standard inductive proximity sensor

M8 Inductive Proximity Sensor equivalent to E2E-X2D2-M1TGJ-U-Z 0.3M

  • Product Model:KJT-J8M
  • Installation method:Flush
  • Sensing distance:1/2/3/mm
  • Appearance specifications:M8*45
  • Output:NPN/PNP NO/NC
  • voltage:10…30VDC
  • Product Detail

KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability, and is widely used in machine tools, metallurgy, chemical industry, textile and Print industries. Product dimensions, cables, and detection distances can all be customized.

1



Product Model
KJT-J8M
Installation method Flush
Detection distance
1/2/3/mm
Working temperature
-25℃~+70℃
Specifications M8*45
Operating Voltage
10-36VDC / 90-250VAC / 20-250VAC
Ripples <10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <3.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method M12 SmartClick
Connector relay type
(0.3m)
Protection level IP67
Sensing surface material PBT
Shell Material Nickel plated copper
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

M12-50


3

接线图


4


9
