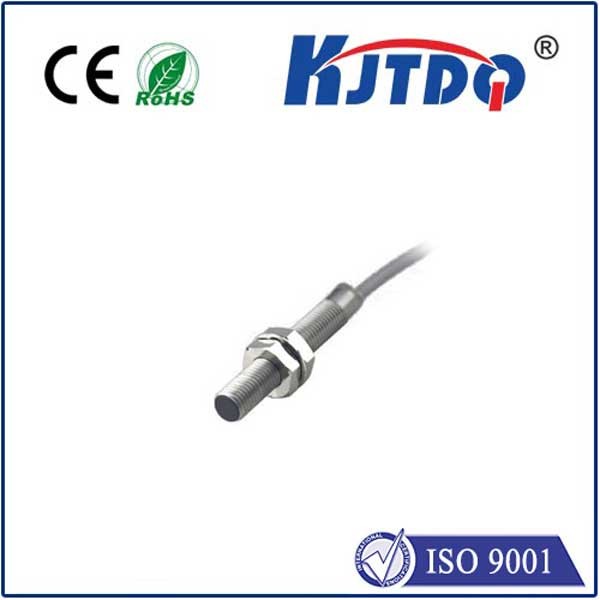

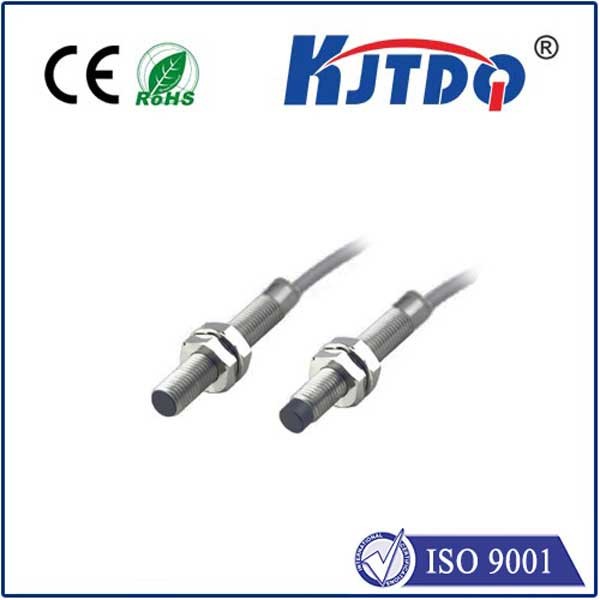

kjt enhanced long-distance inductive proximity switch is a long-distance inductive proximity switch, including a shell, a high-frequency oscillation circuit, a shaping detection circuit, a signal processing circuit, and a switching output circuit. After the signal output by the high-frequency oscillation circuit is shaped and detected by the shaping and detection circuit, it is connected to the signal processing circuit.
●Can detect various metal objects | DC 2NO |
● With surge, overload, short circuit and reverse polarity protection functions | DC 2NC |
● Shell material: Nickel copper alloy | DC 3 NPN NO |
● Protection level: IP67(IEC) | DC 3 NPN NC |
●Ambient temperature: -25℃~+70℃ | DC PNP NO |
|
DC 3 PNP NC |
|
-- |
|
-- |
Product Model |
KJT-J8MT |
Installation method | Flush |
Detection distance |
2/3MM |
Working temperature |
-25℃~+70℃ |
Specifications | M8*45 |
Operating Voltage |
10-36V DC/90-250V AC |
Ripple |
<10% |
No-load current | <10mA |
Maximum load current | 200mA |
Voltage drop | ≤1.5V |
On-off level | 1000Hz |
Hysteresis | <15(Sr) |
Overload protection current | 180mA |
Short circuit protection | YES |
Repeat accuracy | <1.0%(Sr) |
Temperature drift | <10%(Sr) |
Response time | 0.5ms |
Connection method | 2M PVC lead wire |
Protection level | IP67 |
Sensing surface material | PBT |
Shell Material | Nickel plated copper |
EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
Shock/Vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 |
