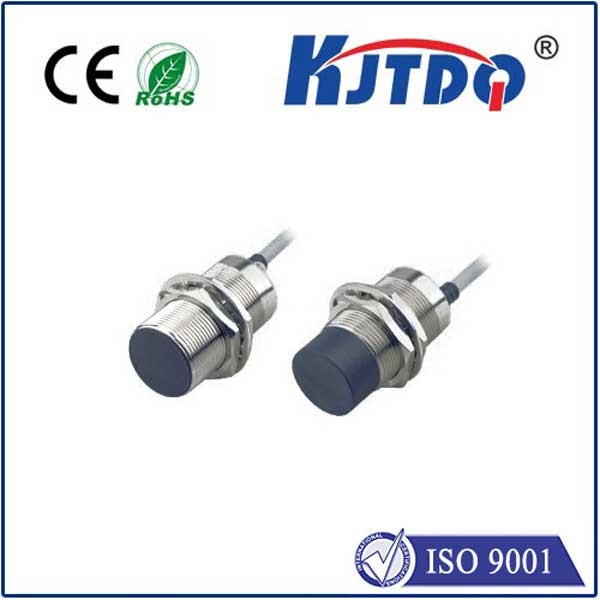

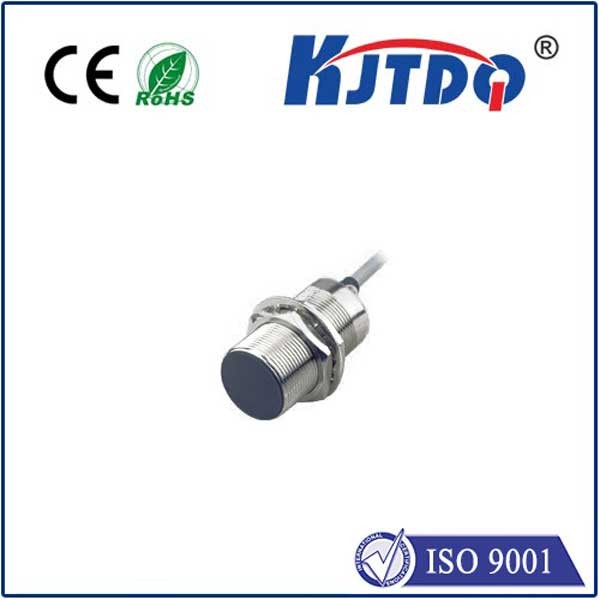

kjt enhanced long-distance inductive proximity switch is a long-distance inductive proximity switch, including a shell, a high-frequency oscillation circuit, a shaping detection circuit, a signal processing circuit, and a switching output circuit. After the signal output by the high-frequency oscillation circuit is shaped and detected by the shaping and detection circuit, it is connected to the signal processing circuit.

●Can detect various metal objects	DC 2NO
● With surge, overload, short circuit and reverse polarity protection functions	DC 2NC
● Shell material: Nickel copper alloy	DC 3 NPN NO
● Protection level: IP67(IEC)	DC 3 NPN NC
●Ambient temperature: -25℃~+70℃	DC PNP NO
	DC 3 PNP NC
	--
	--

Product Model	KJT-J6.5MT
Installation method	Flush
Detection distance	2/3MM
Working temperature	-25℃~+70℃
Specifications	M30*55
Operating Voltage	10-36V DC/90-250V AC
Ripple	<10%
No-load current	<10mA
Maximum load current	200mA
Voltage drop	≤1.5V
On-off level	1000Hz
Hysteresis	<15(Sr)
Overload protection current	180mA
Short circuit protection	YES
Repeat accuracy	<1.0%(Sr)
Temperature drift	<10%(Sr)
Response time	0.5ms
Connection method	2M PVC lead wire
Protection level	IP67
Sensing surface material	PBT
Shell Material	Nickel plated copper
EMC	RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
