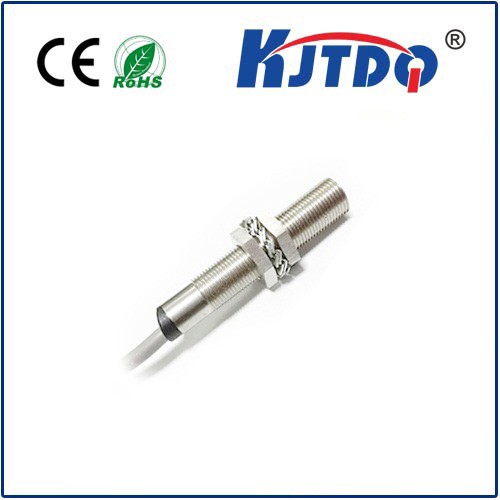

PA-M12-V-05-00EGear speed sensor

Speed Sensor

PA-M12-V-05-00EGear speed sensor

  • Dimension:M12*40mm
  • Voltage:8-30VDC
  • Current consumption:suitable for 15mA
  • output signalVo:push-pull outputImax=+/-20mA,Ulow<2.5V,Uhigh>Usupply-3.5V
  • Frequency Range:0-15KHz
  • Product Detail

 The core component of Kejit gear speed sensor uses magnetoresistance as the detection component, and then uses a new signal processing circuit to reduce noise and improve functions. By comparing with the output waveforms of other types of tooth speed sensors, the error of the measured speed is extremely small and the linear characteristics are very consistent. The sensing objects are magnetic materials or magnetically permeable materials, such as magnetic steel, iron and electrical steel. When the magnetic or permeable material with protrusions (or depressions) on the measured object rotates as the measured object, the sensor outputs a pulse signal related to the rotation frequency to achieve the purpose of speed measurement or displacement detection.

参数

Dimension M12*40mm
Voltage 8-30VDC
Current consumption 适合大15mA
output signalVo 推挽式输出Imax=+/-20mA,Ulow<2.5V,Uhigh>Usupply-3.5V
Frequency Range 0-15KHz
Air Gap 模数1:0.2to0.6mmm;模数2:0.2to1.5mm
Earthquake resistance 5gn(5…2000Hz范围内)
Impact resistance 50gn(20ms期间内,半正弦波)
IP 传感器头部:IP68;电缆衔接部分和连接器:IP67
temperature range -20℃…+85℃

尺寸

微信图片_20230913140641
