DSS1210.00STV Speed sensor Gear speed sensor

Speed Sensor

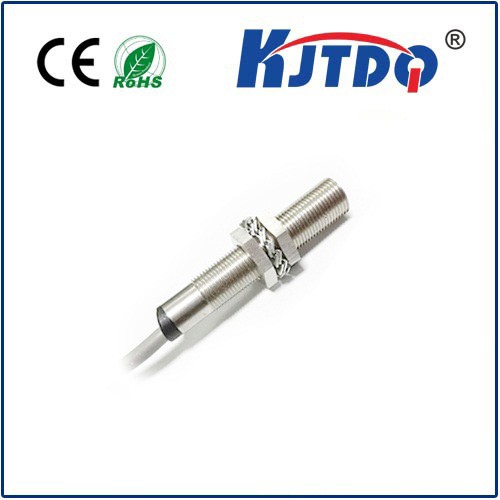

DSS1210.00STV Speed sensor Gear speed sensor

  • Power supply voltage:8-30VDC
  • Current consumption:suitable up to 15mA
  • Output signal Vo:push-pull output Imax=+/-20mA,Ulow<2.5V,Uhigh>Usupply-3.5V
  • Frequency Range:0-15KHz
  • Air gap:Modulus1:0.2to0.6mmm;Modulus2:0.2to1.5mm
  • Product Detail

The core component of Kejit gear speed sensor uses magnetoresistance as the detection component, and then uses a new signal processing circuit to reduce noise and improve functions. By comparing with the output waveforms of other types of tooth speed sensors, the error of the measured speed is extremely small and the linear characteristics are very consistent. The sensing objects are magnetic materials or magnetically permeable materials, such as magnetic steel, iron and electrical steel. When the magnetic or permeable material with protrusions (or depressions) on the measured object rotates as the measured object, the sensor outputs a pulse signal related to the rotation frequency to achieve the purpose of speed measurement or displacement detection.

参数

voltage 8-30VDC
Current consumption 适合大15mA
Output signal Vo push-pull output Imax=+/-20mA,Ulow<2.5V,Uhigh>Usupply-3.5V
Frequency Range 0-15KHz
Air gap Modulus1:0.2to0.6mmm;Modulus2:0.2to1.5mm
Earthquake resistance 5gn(5…2000Hz范围内)
Impact resistance 50gn(20msduring 20ms, half sine wave
IP Sensor head:IP68;cable connection and connector:IP67
temperature range -20℃…+85℃

尺寸

微信图片_20230913140641
