KJT Capacitive Proximity Sensors

Capacitive proximity sensors can be used to detect any object without contact. Capacitive proximity switches can detect metallic as well as non-metallic objects, regardless of the colour and surface condition of the object to be detected, whether transparent or not, can be reliably detected, the sensitivity can be adjusted knob, the closed non-metallic containers can be indirectly detected for liquids, powders and other materials. Almost all materials can be identified.

       Principle of operation

Capacitive proximity switch also belongs to a kind of position sensor with switching output, first of all need to measure the capacitance between the sensor sensing surface electrode and the circuit potential electrode, a close object affects the electric field between the two poles of this capacitor. This principle applies not only to metallic but also to non-metallic objects. Capacitive sensors generally operate via an RC oscillator, where even a small change in capacitance affects the amplitude. An integrated circuit then converts the amplitude into a switching signal, the sensitivity of which can be adjusted by means of a potentiometer.

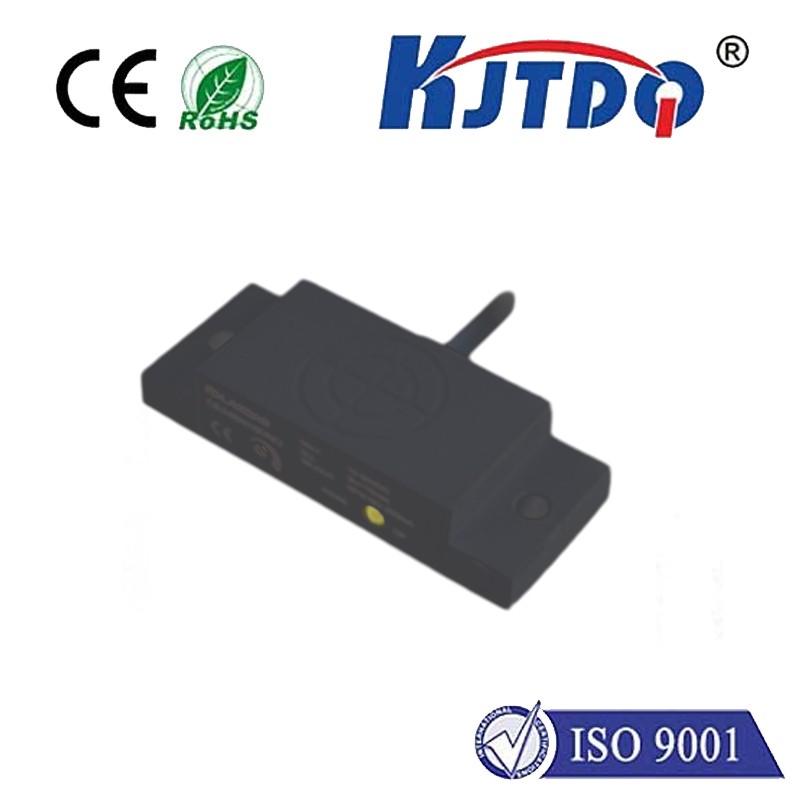

Pipe Level Sensor
characterisation
outer diameter8...11	mm	sensing distance          0...13
wall thickness0...1	mm
traveller's difference			sensing distanceSr的1...15%
Repeatable error rate			≤3%
Ambient humidity			30…90%RH
Protection level			IP 65和IP 67
Storage temperature		℃	- 10...+ 65
operating temperature		℃	- 10...+ 65
materials	外壳		non-metal
	电缆		PVR
vibration impedance (physics)	根据KJT-Y		25 gn，amplification ± 2 mm (f = 10...55 Hz)
Impulse impedance	根据KJT-Y		50 gn，continuing 11 ms
Output Status			LED指示灯
rating voltage		V	c 12...24，Reverse polarity protection
Voltage range (including pulsations)		V	c 10...36
No-load current loss		mA	≤ 10
Switching capacity		mA	≤ 200，With overload and short-circuit protections
through-state voltage drop		V	≤ 2
switching frequency	8...11	Hz	20
	delay	start	ms	≤ 10
		response	ms	≤ 0.2
reset		ms	≤ 0.2

Liquids, powders, non-metals, and metals can all be detected. The sensing distance and sensitivity can be adjusted, and the detection of liquids is not affected by bubbles and liquid color. The detection distance is greatly affected by the size, thickness and conductivity of the object being detected. The larger and thicker the object being detected, the better its electrical conductivity. The greater the product detection distance, the smaller the detection distance.
