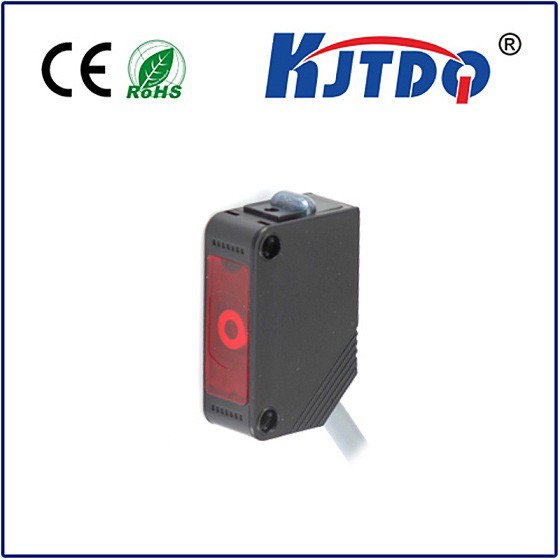

Q30 Laser Photoelectric Sensor (Through beam)

Laser Photoelectric sensor

Q30 Laser Photoelectric Sensor (Through beam)

  • Thread Size:Q30
  • Detection distance:70m/100m
  • Detecting spot size:<4mm
  • Protection class:IP 67
  • Operating ambient temperature:-5℃—+50℃
  • Product Detail

The KJT laser sensor (laser photoelectric switch) is a sensor that uses laser technology for measurement. It consists of a laser, a laser detector and a measuring circuit. Laser sensor is a new type of measuring instrument, which has the advantages of contactless long-distance measurement, fast speed, high accuracy, large range, and strong resistance to optical and electrical interference;


主要技术参数

Thread Size Q30
Detection distance 70m/100m
Detecting spot size 适合小4mm
Operating voltage 10-30VDC
No load current <9mA
Suitable for large load currents 150mA
Leakage current <0.01mA
Voltage drop <1V
Switching Frequency 120Hz
Respond time 0.1mS /0.1mS
Switching hysteresis <15%(sr)
Repeatability <1.0% (sr)
Protection class IP 67
Operating ambient temperature -5℃—+50℃
Temperature drift <10%(sr)
Short circuit protection Yes
LED light display Yes
Shell material 不锈钢  塑料
Connector method 出线式

尺寸图

07efef9a126c6e1cdead711d5ce4afbf

接线图

2a3939f8b646476821b5e5d90feefdc6

c01ea261d3ab5687c17f83cb98f20828_

场景图
