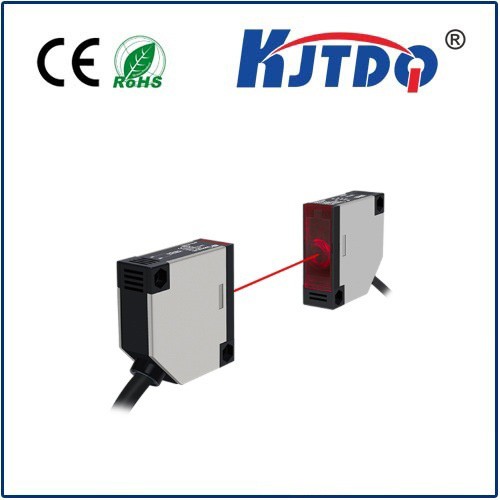

Q50 Laser Photoelectric Sensor (Through beam)

Laser Photoelectric sensor

Q50 Laser Photoelectric Sensor (Through beam)

  • Thread Size:Q50
  • Detection distance:reflecting plate: Sn=100m
  • Detecting spot size:<4mm
  • Protection class:IP 67
  • Operating ambient temperature:-5℃—+50℃
  • Product Detail

The KJT laser sensor (laser photoelectric switch) is a sensor that uses laser technology for measurement. It consists of a laser, a laser detector and a measuring circuit. Laser sensor is a new type of measuring instrument, which has the advantages of contactless long-distance measurement, fast speed, high accuracy, large range, and strong resistance to optical and electrical interference;


主要技术参数

Thread Size Q50
Detection distance reflecting plate: Sn=100m
Detecting spot size <4mm
Operating voltage 10-30VDC
No load current <9mA
Suitable for large load currents 150mA
Leakage current <0.01mA
Voltage drop <1V
Switching Frequency 120Hz
Respond time 0.1mS /0.1mS
Switching hysteresis <15%(sr)
Repeatability <1.0% (sr)
Protection class IP 67
Operating ambient temperature -5℃—+50℃
Temperature drift <10%(sr)
Short circuit protection Yes
LED light display Yes
Shell material Stainless steel Plastic
Connector method take-out type

尺寸图

94dbe2ec9bd682b941c50c699e6dd0a3

接线图

2a3939f8b646476821b5e5d90feefdc6

c01ea261d3ab5687c17f83cb98f20828_

场景图
