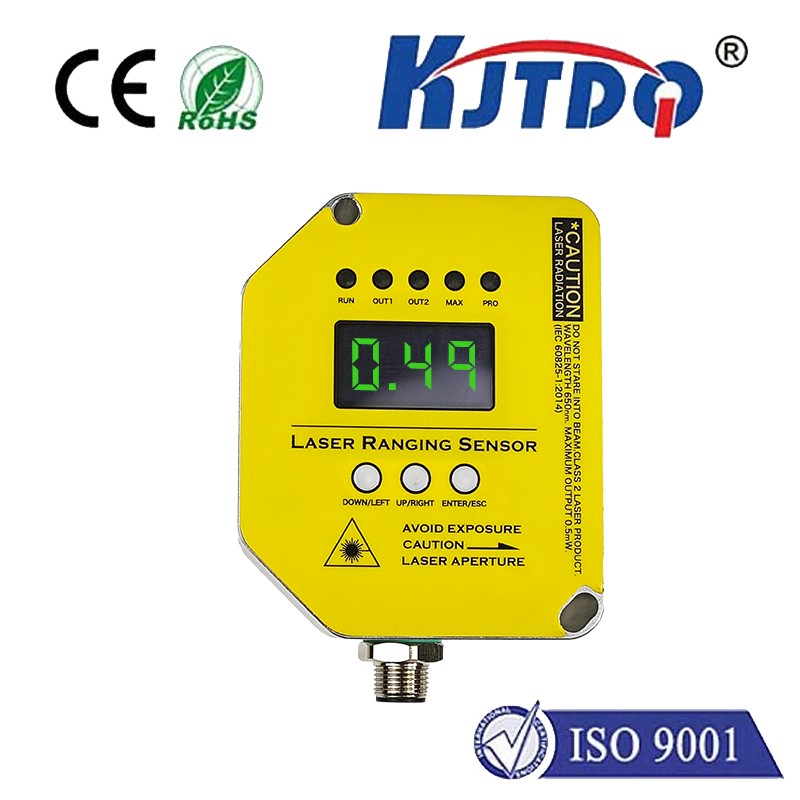

TLS-30C High-precision laser ranging displacement sensor (30 meter range)

KJT TLS laser ranging sensor can detect vertical or tilted targets within a range of 30 meters, regardless of color, material or gloss.

•Over-limit relay output, supports NPN/PNP; voltage and current analog output; RS485 output

•Excellent combination of range, repeatability and accuracy enables highly reliable target detection and precise distance measurement

•Five 8-segment displays and push-button programming for easy installation, troubleshooting and real-time distance measurement

•Durable IP67 housing, high immunity to ambient light interference and stable performance over a wide range of temperatures provide reliable performance in challenging environments

Electronic parameters

Supply voltage U_V	DC 10V...30V
residual ripple	≤ 5 V
Power consumption	≤ 2.1W 4)
initialization time	≤ 250ms
Preheat time	≤ 10s
Shell material	Aluminum alloy（AL） plexiglass（PMMA）
Connection Type	M12 waterproof connector, lead wire
monitor	5-digit digital tube, 5 x LED
weight	360g
Enclosure rating	IP65
Protection level	III

1) Limit value, reverse polarity protection when operating in a circuit with short-circuit protection: Suitable for max. 8 A.

2) For TLS-xxxx: UV > 15 V.

3) Must not fall below or exceed UV tolerance.

4) No load.

Performance parameters

Measuring range	0-5M ,0-10M,0-15M ,0-20M,0-30M ,50M,80M,100M,150M,200M
measuring objects	natural objects
resolution	1mm
Accuracy	Accuracy 1.5 mm+d 0.5‰

√ The measuring range can be set, suitable for up to 30 meters

√ Digital tube displays measurement results in real time

√LED status display

√ Voltage analog output

√ Over-limit relay output (supports NPN/PNP)

√Measurement distance correction

√Basic parameter settings

√ RS485 interface, supports Modbus RTU protocol.

frequency	5Hz，10Hz, 20Hz, 30Hz
Output time	≥ 4 ms ₆₎
light source	red laser
Laser level	1 (IEC 60825-1:2014, EN 60825-1:2014) ₇₎
Typical photoelectric size distance（）	15 mm x 15 mm (10 m)
Other functions	Settable sliding average: fast/slow, Switching mode: Distance Object (DtO), Teachable, parameterizable and invertible digital output, Adjustable hysteresis, Teachable, parameterizable, reversible analog output terminal, multi-function input: laser off/external teaching/disable, turn off the display, restore factory settings, lock user interface
Average laser service life (at 25℃)	100,000 h

1) Corresponds to 1 σ.

2) 6% ... 90% reflectivity.

3) Depends on how the average is formed: fast/slow.

4) 90% reflectivity.

5) Introduce the object into the measuring range from the side.

6) Continuously changes the distance to the object within the measuring range.

7) Wavelength: 658 nm;

8)Suitable for high power: 120 mW;

9)Pulse duration: 2.5 ns; contact rate: 1/400.

Interface parameters

digital output
	quantity	1 _{1) 2) 3)}
	type<, /SPAN>	PNP，NPN optional
	Suitable for large output current I_A	≤100 mA
Analog output
	quantity	1
	type	Voltage/Current output optional
	Voltage/current	0V-10V/4mA-20mA,≤300Ω
	resolution	12bit
Multi-function input(MF)		1 _{x3) 4)}
lag		10mm...1000mm
