TLS-50C High-precision laser ranging displacement sensor (50 meter range)

Laser Photoelectric sensor

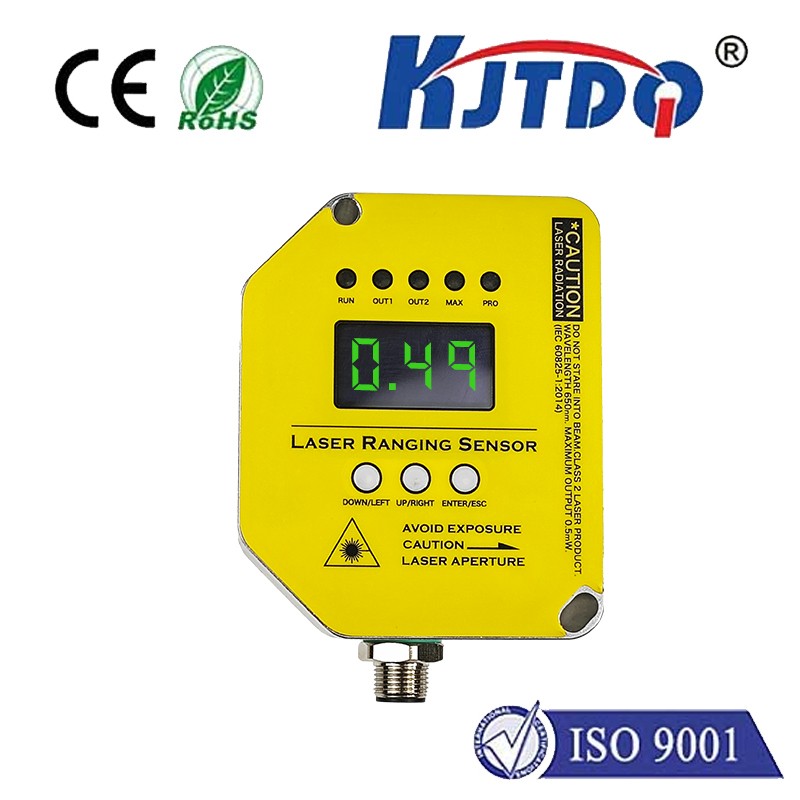

TLS-50C High-precision laser ranging displacement sensor (50 meter range)

  • ●:TLS laser ranging sensors can detect vertical or tilted targets within a range of 30 meters, regardless of color, material or gloss.
  • ●:Over-limit relay output, supports NPN/PNP; voltage and current analog output; RS485 output
  • ●:Excellent combination of range, repeatability and accuracy enables highly reliable target detection and precise distance measurement
  • ●:OLED display and button programming for easy installation, troubleshooting and real-time distance measurement
  • ●:Durable IP67 housing, high immunity to ambient light interference and stable performance over a wide range of temperatures provide reliable performance in challenging environments
  • Product Detail

KJT TLS laser ranging sensor can detect vertical or tilted targets within a range of 30 meters, regardless of color, material or gloss.

  •Over-limit relay output, supports NPN/PNP; voltage and current analog output; RS485 output

  •Excellent combination of range, repeatability and accuracy enables highly reliable target detection and precise distance measurement

  •Five 8-segment displays and push-button programming for easy installation, troubleshooting and real-time distance measurement

  •Durable IP67 housing, high immunity to ambient light interference and stable performance over a wide range of temperatures provide reliable performance in challenging environments

1


Electronic parameters


Supply voltage UV DC 10V...30V
residual ripple ≤ 5 V
Power consumption ≤ 2.1W 4)
initialization time ≤ 250ms
Preheat time ≤ 10s
Shell material Aluminum alloy(AL)
plexiglass(PMMA)
Connection Type M12 waterproof connector, lead wire
monitor 5-digit digital tube, 5 x LED
weight 360g
Enclosure rating IP65
Enclosure rating III


                  1) Limit value, reverse polarity protection when operating in a circuit with short-circuit protection: Suitable for max. 8 A.

                  2) For TLS-xxxx: UV > 15 V.

                  3) Must not fall below or exceed UV tolerance.

                  4) No load.


Performance parameters


Measuring range 0-5M ,0-10M,0-15M ,0-20M,0-30M ,50M,80M,100M,150M,200M
measuring objects natural objects
resolution 1mm
Accuracy Accuracy1.5 mm+d 0.5‰


                  √ The measuring range can be set, suitable for up to 30 meters

                  √ Digital tube displays measurement results in real time

                  √ LED status display

                  √Voltage analog output

                  √ Over-limit relay output (supports NPN/PNP)

                  √Measurement distance correction

                  √ Basic parameter settings

                  √ RS485 interface, supports Modbus RTU protocol.


frequency 5Hz,10Hz,  20Hz,  30Hz
Output time ≥ 4 ms  6)
light source red laser
Laser level 1 (IEC 60825-1:2014, EN 60825-1:2014)  7)
Typical photoelectric size distance() 15 mm x 15 mm (10 m)
Other functions Settable sliding average: fast/slow, Switching mode: Distance Object (DtO), Teachable, parameterizable and invertible digital output, Adjustable hysteresis, Teachable, parameterizable, reversible analog output terminal, multi-function input: laser off/external teaching/disable, turn off the display, restore factory settings, lock user interface
Average laser service life (at 25℃) 100,000 h


                          1) Corresponds to 1 σ.

                          2)6% ... 90% reflectivity.

                          3) Depends on how the average is formed: fast/slow.

                          4) 90% reflectivity.

                          5) Introduce the object into the measuring range from the side.

                          6) Continuously changes the distance to the object within the measuring range.

                          7) Wavelength: 658 nm;

                               8)Suitable for high power: 120 mW;

                               9)Pulse duration: 2.5 ns; contact rate: 1/400.


Interface parameters

digital output


quantity 1) 2) 3)

type<, /SPAN> PNP,NPN可选择

Suitable for large output current IA ≤100 mA
Analog output


quantity 1

type Voltage/Current output optional

Voltage/current 0V-10V/4mA-20mA,≤300Ω

resolution 12bit
Multi-function input (MF)
x3) 4)
lag
10mm...1000mm



2


32

3

12

4


7
