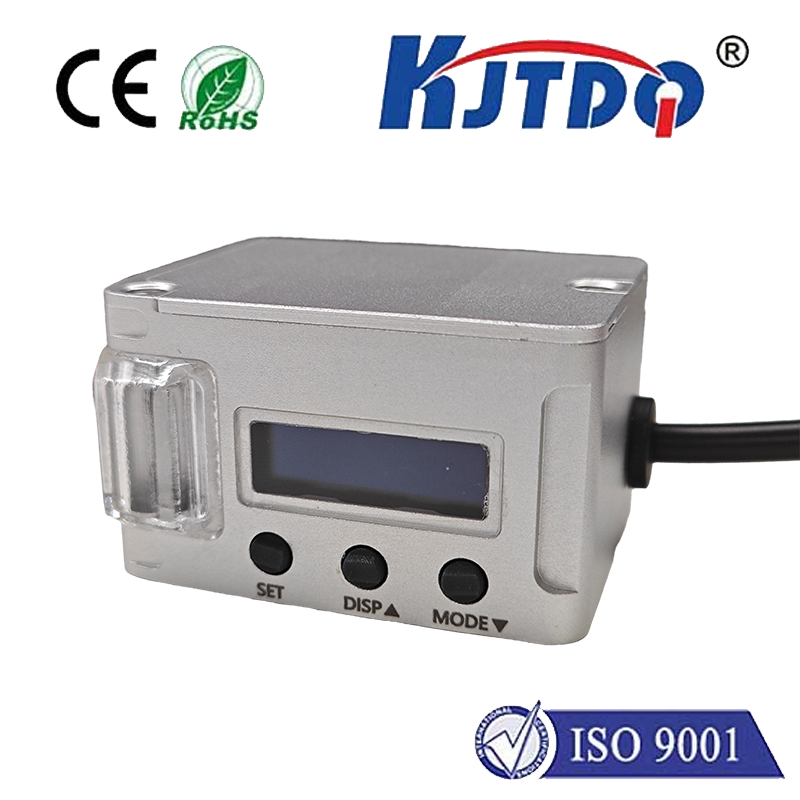

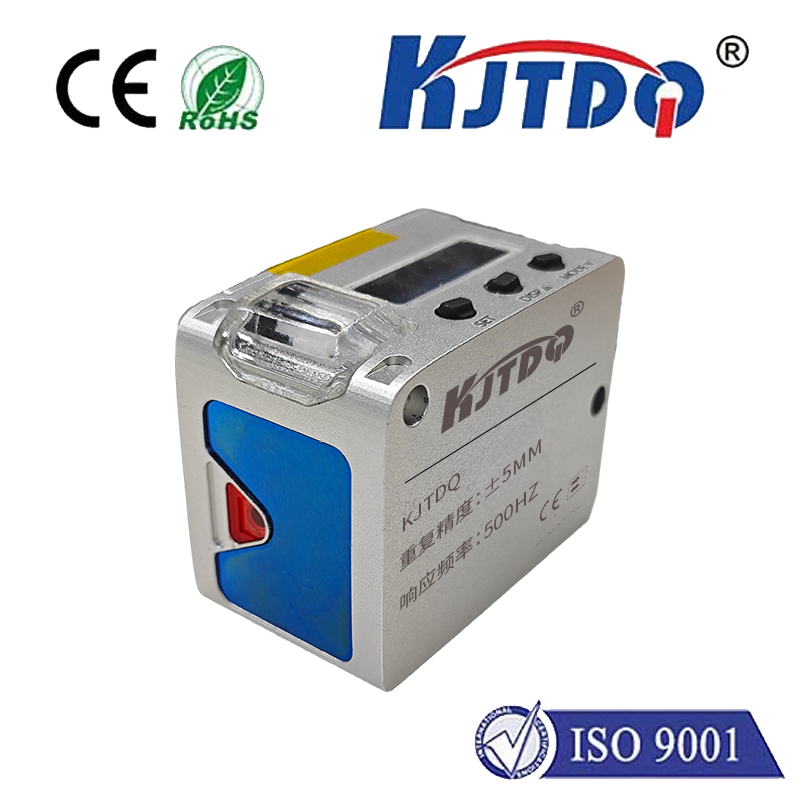

TOF laser sensor with built-in amplifier KJT-TG20CL

Laser Photoelectric sensor

TOF laser sensor with built-in amplifier KJT-TG20CL

  • model :KJT-TG20CL
  • Type:M12 connector cable type
  • Detection distance:10m
  • spot diameter:Spot diameter
  • light source:light source
  • Repeatability:±5mm
  • response frequency:500Hz
  • Product Detail

The KJT-TG20 series is a high-precision short-range ranging lidar that supports both indoor and outdoor applications. For precision instrument inspection, process control of automated production lines, reliable measurement and detection of extremely dark or shiny materials, etc., the technical specifications of KJT-TG20 can ensure that it meets the needs of the application.

1


model  KJT-TG20 KJT-TG20C KJT-TG20CL KJT-TG50 KJT-TG50C KJT-TG50CL
Type Cable type M12 connector cable type Cable type M12 connector cable type
Detection distance 10m 20m
spot diameter about 4 mm Variable (for use below ø40 mm)

light source

kind red laser (660nm)
Mutual interference prevention function 4 units (when using the interference prevention function)
Repeatability ±5mm
response frequency 500Hz
I/O control output

NPN open collector/PNP open collector switching method

30 VDC or less, 50 mA or less, residual voltage 2 V or less

N.O./N.C. switching method

*3*4

external input

Emission stop/tuning/reference plane update (when using DATUM mode) switching method

Short circuit current NPN: 1 mA or less/PNP: 1 mA or less

analog output

Current output/voltage output switching method

Current output: 4 to 20 mA Maximum load resistance 500 Ω

Voltage output: 0 to 10 V External load resistance 5 kΩ or more

*3*4

protection circuit Power reverse connection protection, power surge protection/output short circuit protection, output reverse connection protection, output surge protection
Supply Voltage 20 to 30 VDC ripple (P-P) 10%, Class 2 or LPS
Current consumption 45 mA or less (excluding load)*5 50 mA or less (excluding load)*7
Environmental resistance Shell protection class IP65/ IP67
Ambient light Incandescent/Daylight: Below 10,0000 lux
environmental temperature -20 to +55 °C (no freezing)
relative humidity 35 to 85 % RH (non-condensation)
seismic defenses 10 to 55 Hz, dual amplitude 1.5 mm, 2 hours each in X, Y, Z directions
impact resistance 1,000 m/s^2, 6 times each in X, Y, and Z directions
material (that sth is made of)

Cover: zinc casting (nickel-chromium plated),

Indicator cover and button: PES,

PMMA with anti-scratch coating,

Cable sleeve: PBT,

Cable: PVC

Cover: zinc casting (nickel-chromium plated),

Indicator cover and button: PES,

Lens cover and monitor: PMMA with anti-scratch coating,

Cable sleeve: PBT,

Cable: PVC,

M12 connector: TPE, PBT, nickel-plated brass

Cover: zinc casting (nickel-chromium plated),

Indicator cover and button: PES,

Lens cover and monitor: PMMA with anti-scratch coating,

Cable sleeve: PBT,

Cable: PVC

Cover: zinc casting (nickel-chromium plated),

Indicator cover and button: PES,

Lens cover and monitor: PMMA with anti-scratch coating,

Cable sleeve: PBT,

Cable: PVC,

M12 connector: TPE, PBT, nickel-plated brass


Replenish:


*1 The displayable range is 50 to 2200.


*2 FDA (CDRH) classification is based on IEC60825-1 and implemented in accordance with the requirements of Laser Notice No.50.


*3 I/O can be selected from the following combinations.


・Control output × 2, control output + external input


・Control output + analog output (LR-TB5000/TB5000C/TB5000CL only)


・External input + analog output (LR-TB5000/TB5000C/TB5000CL only)


(Please refer to the user manual for setting methods)


*4 IO-Link: Supports Specification v.1.1 / COM2 (38.4 kbps).


If you are using it in an environment where downloading files via the Internet is not possible, please contact the nearest sales office.


*5 145 mA or less (including load)


*6 The displayable range is 50 to 5200.


*7 150 mA or less (including load)



7

3

接线图

4


PREVIOUS:Amplifier built-in type TOF laser sensor KJT-TG20C

NEXT:TOF laser sensor with built-in amplifier KJT-TG50
