In the past, traditional reflective photoelectric sensors had problems such as "short detection distance", "erroneous detection due to the color of the workpiece", and "large sensor body", and had certain limitations in use. The TOF detection principle is adopted to fundamentally change the problem that optoelectronic products are easily affected by target objects.

Laser light source	Laser diode 650nm, ≤1mW; compliant GB7247.1-2001, Class I laser eye safety requirements
Laser level	Class 1
Ranging frequency	1000Hz Adjustable
working distance	0.05m-2m
10% reflectivity	1m
Response time	lms (adjustable)
system error	±10mm
persistent error	±3mm
Operating Voltage	9-36V
interface	PNP/NPN/TTL serial port
Power consumption	0.5W
weight	<10g
Dimensions (length, width and height)	33mn x20mm xl1mm
Protection level	IP65
Working temperature	-20C-+75℃
Storage environment temperature	-40C-+100℃
Ambient light resistance	>50klux

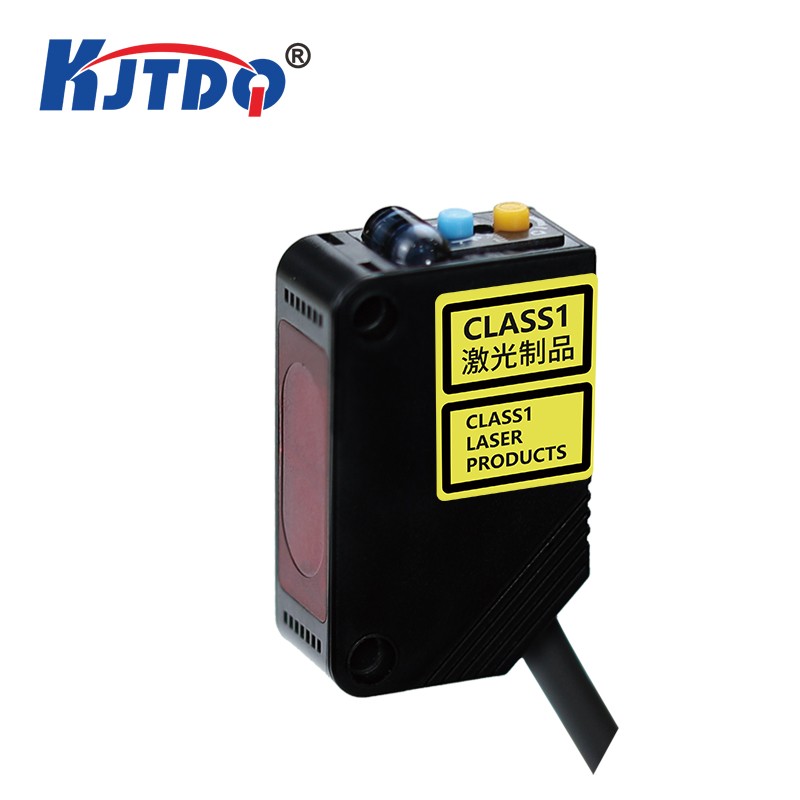

Compared with traditional photoelectric switches that rely on light quantity feedback to detect objects, the KJT-FG30 photoelectric sensor using TOF technology has the following advantages:

1: More accurate positioning

2: Reduce the interference caused by the color, curvature, environment, etc. of the object surface

3: Switching frequency up to 1000 Hz

4: Can detect transparent objects stably.

5: Not affected by sunlight, can be used outdoors.

6: Achieve longer detection distance (diffuse reflection can reach up to 4 m! It is the only laser photoelectric sensor on the market)

7: The convenient and easy-to-use operation method allows ordinary models to quickly set two switch points.
