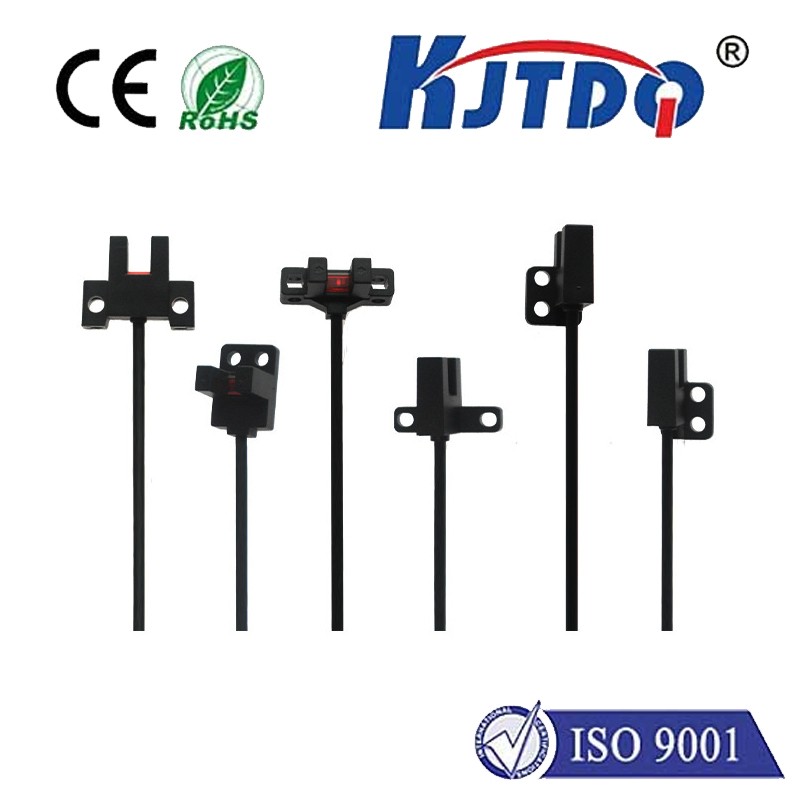

KJT-UT45 Series Ultra Small Slot Photoelectric Sensor

Ultra Small inductive proximity sensor

KJT-UT45 Series Ultra Small Slot Photoelectric Sensor

  • ●:Protective class IP65
  • ●:Response frequency 2kHZ
  • ●:Standard 4 wire, NO/NC switchable
  • ●:Standard use of twist-resistant conductors
  • ●:Reverse power supply, output short circuit protection
  • ●:M3 screws for easy installation
  • Product Detail

KJT-UT45 series ultra-small slot photoelectric sensors, all models are equipped with two independent outputs - ON when light enters/ON when blocked, which can respond to different output requirements according to different places of use. 5-24V wide voltage range, 3kHz high-speed response, can be used in a variety of industrial environments.

主要技术参数


Detection distance 5mm (slot width)
Standard detection object Opaque objects above 1.2×0.8mm
Output mode NPN or PNP open collector
Switch modes L.on (light entry action)/D.on (light blocking action) switchable
Repeat accuracy 0.03mm or less
Light source (luminescence wavelength) GaAs infrared light-emitting diode (940nm)
Display light*1 The light is on (red) when the light is blocked
Voltage DC5V--DC24V±10% pulsation (p-p) less than 10%
Quiescent current consumption ≤8mA
Protect the circuit Surge protection, reverse polarity protection
Withstand voltage AC,1000V 1 min. between all power supply connection terminals and enclosure
Withstand vibration 10~55Hz, amplitude 1.5mm, 2 hours each in X, Y and Z directions
Response frequency 3kHz
Use ambient illumination Light-receiving surface illumination Fluorescent lamp: 1000 lux or less
Ambient temperature

During working: -25~+55℃

During storage: -30~+80℃

Ambient humidity

During working: -25~+55℃

During storage: -30~+80℃
