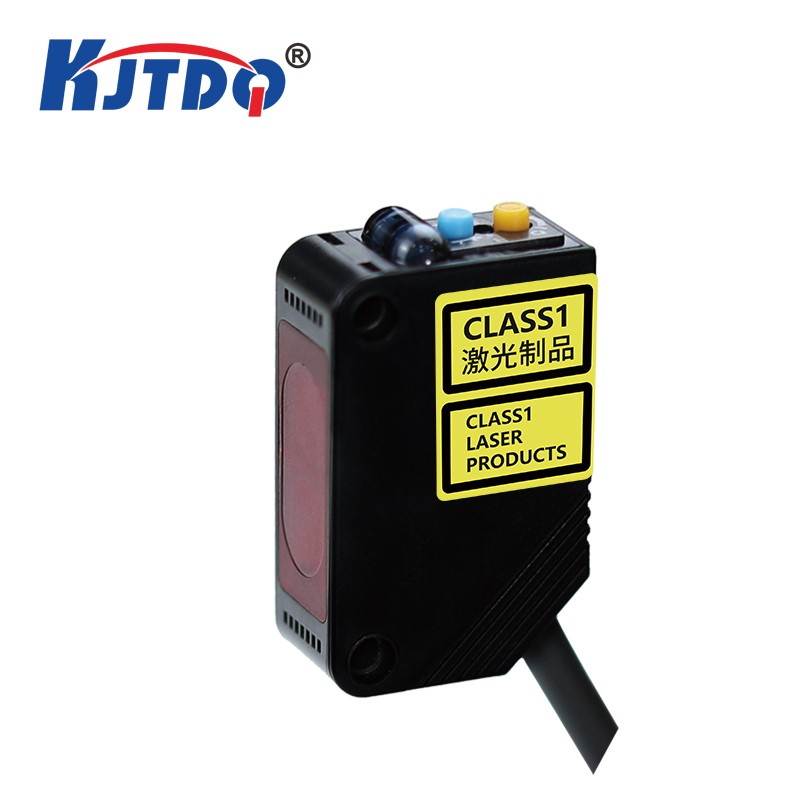

TOF type laser photoelectric sensor 4m

Laser Photoelectric sensor

TOF type laser photoelectric sensor 4m

  • ●:More accurate positioning
  • ●:Reduce the interference caused by the color, curvature, environment, etc. of the object surface
  • ●:Switching frequency up to 1000 Hz
  • ●:Stable detection of transparent objects
  • ●:Not affected by sunlight and can be used outdoors
  • ●:Achieve longer detection distance (diffuse reflection up to 4 m!! It is the only laser photoelectric sensor on the market)
  • ●:The convenient and easy-to-use operation method allows ordinary models to quickly set two switch points.
  • Product Detail

1


In the past, traditional reflective photoelectric sensors had problems such as "short detection distance", "erroneous detection due to the color of the workpiece", and "large sensor body", and had certain limitations in use. The TOF detection principle is adopted to fundamentally change the problem that optoelectronic products are easily affected by target objects.



Laser light source

Laser diode 650nm, ≤1mW; compliant

GB7247.1-2001, Class I laser eye safety requirements

Laser level Class 1
Ranging frequency 1000Hz Adjustable
working distance 0.05m-4m
10% reflectivity 4m
Response time lms (Adjustable)
system error ±10mm
persistent error ±3mm
Operating Voltage 9-36V
interface PNP/NPN/TTL serial port
Power consumption 0.5W
weight <10g
Dimensions (length, width and height) 33mm x20mm x11mm
Protection level IP65
Working temperature -20C-+75℃
Storage environment temperature -40C-+100℃
Ambient light resistance >50klux



  Compared with traditional photoelectric switches that rely on light quantity feedback to detect objects, the KJT-FG30 photoelectric sensor using TOF technology has the following advantages:

  1:More accurate positioning

2: Reduce the interference caused by the color, curvature, environment, etc. of the object surface

3: Switching frequency up to 1000 Hz

4: Can detect transparent objects stably.

5: Not affected by sunlight, can be used outdoors.

6: Achieve longer detection distance (diffuse reflection up to 4 m! It is the only laser photoelectric sensor on the market)

7: The convenient and easy-to-use operation method allows ordinary models to quickly set two switch points.
