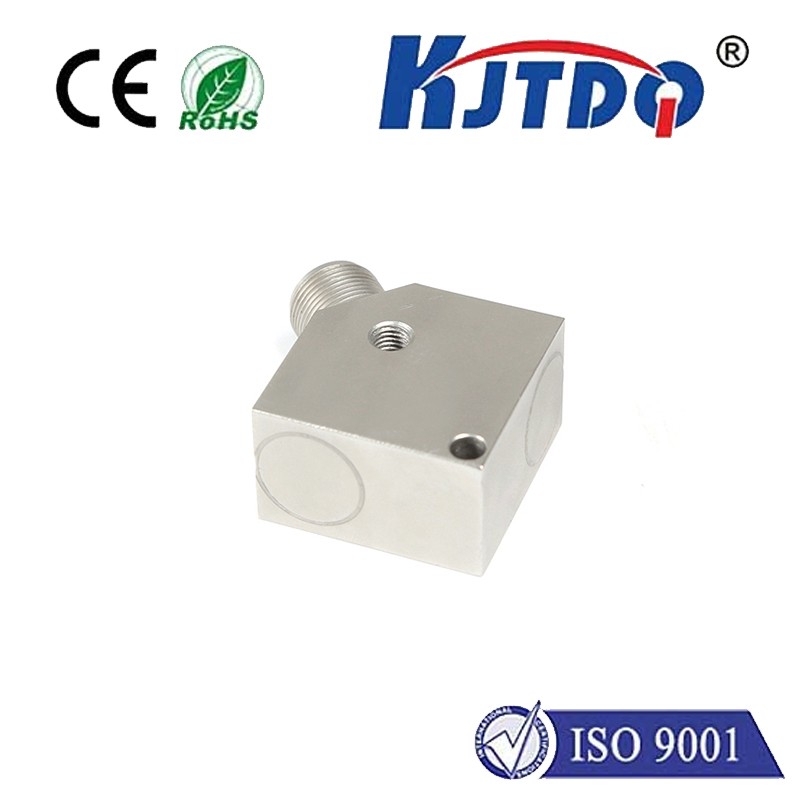

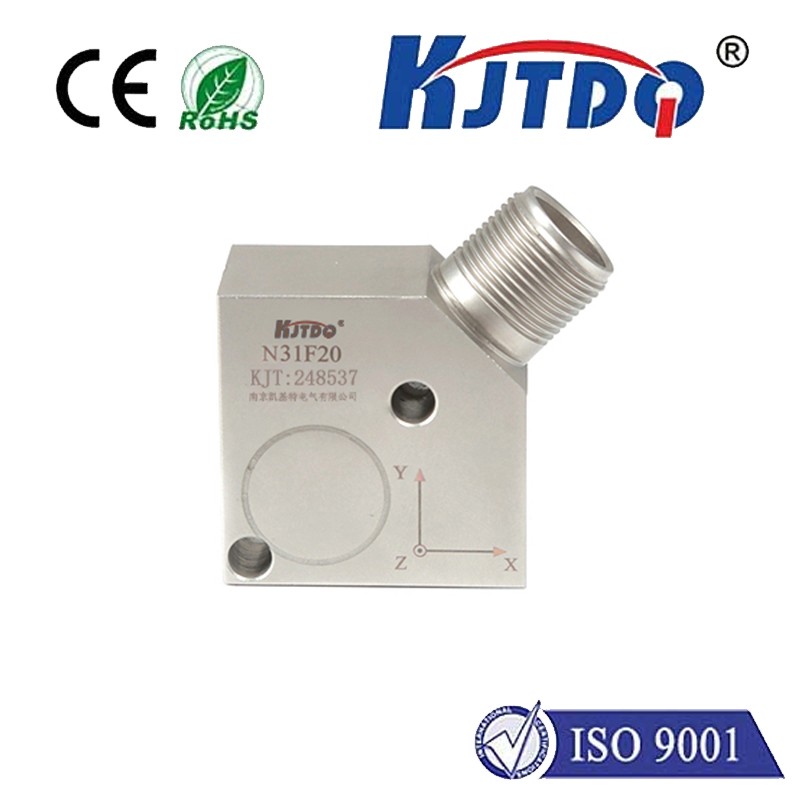

The piezoelectric three-axis integrated vibration speed transmitter is a professional high-precision design based on the piezoelectric acceleration sensor. It has a precision integrating circuit embedded inside and outputs a 4-20mA signal. It can be connected to various general-purpose secondary instruments. Or computer digital collection monitoring system. It can be used to measure absolute vibration speed of equipment failures in industrial fields such as machinery, power generation, steel, metallurgy, chemical industry, rail transit, etc.

★Embedded precision integrating circuit, effective value 4-20mA output

★Used for absolute vibration speed measurement of equipment failure

★Three-way output, can measure X, Y, Z directions simultaneously

dynamic characteristics
Measuring range (peak value)	0~20mm/sec
Current output	4~20mA
Amplitude nonlinearity	<2%
Measurement error	≤5%
Frequency response	5~1,000Hz( +1dB)
Lateral sensitivity ratio	≤5%
Electrical properties
Supply voltage	15VDC~30VDC(commonly used 24)
Environmental characteristics
Operating temperature	-40°C~+85°C
Impact limit (peak value)	1000 g
temperature response	See attached picture for temperature curve
physical properties
structure type	CUT
Housing material	304 Stainless Steel
output method	5/8-24Four core socket
Installation method	M6 or 2-M5 hexagon socket
Protection level	IP65
weight	~180 g
appendix
mounting bolts	M6 or 2-M5 hexagon socket
connecting cables	Four-core shielded cable 3 meters
