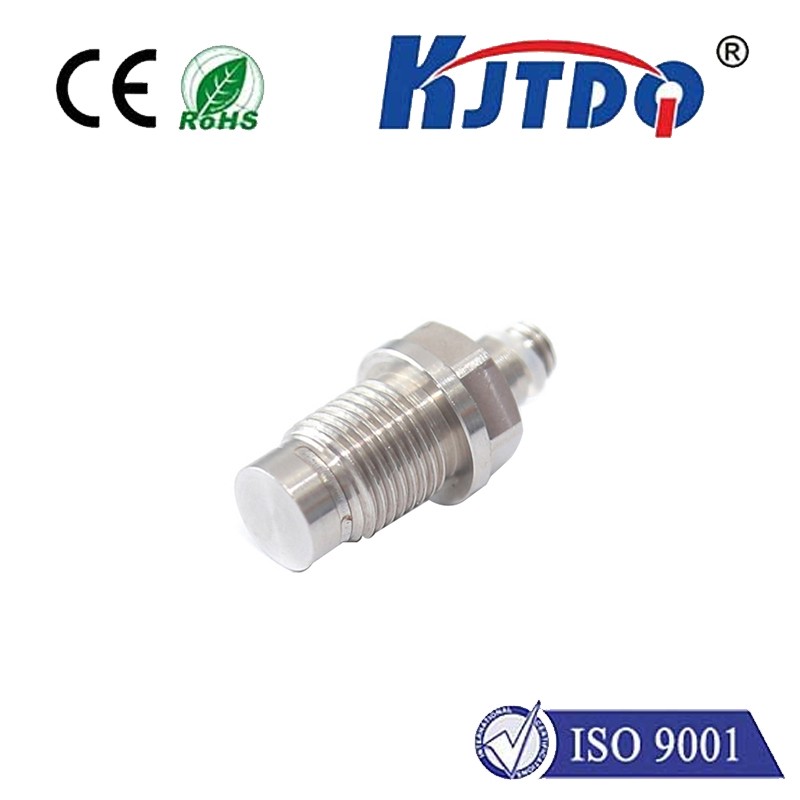

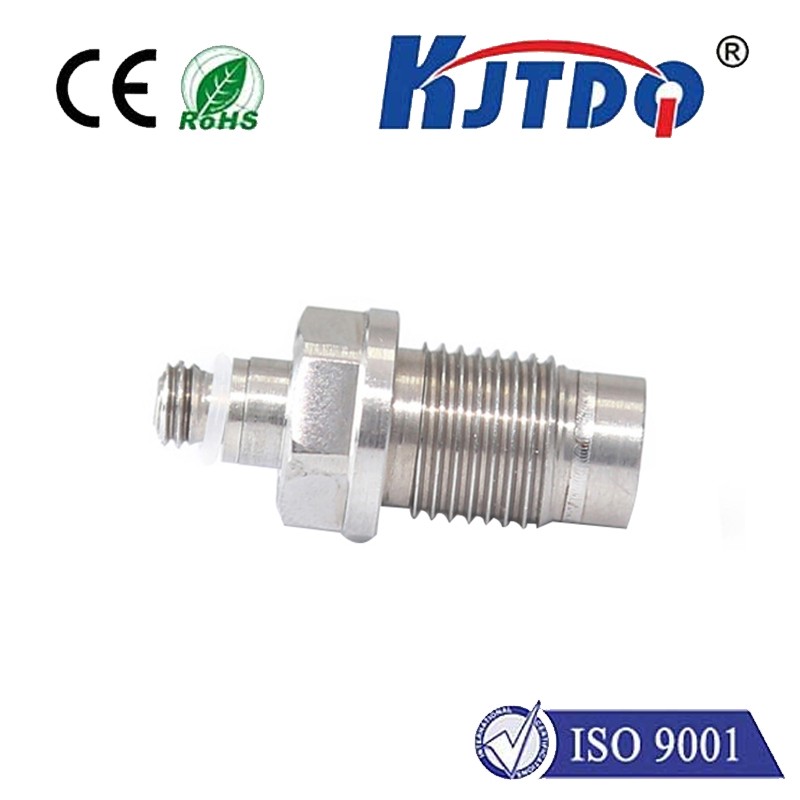

Piezoelectric pressure sensor is a sensor that uses the piezoelectric effect of piezoelectric material to convert the measured pressure into an electrical signal. It has the characteristics of wide frequency range, fast dynamic response, and good temperature characteristics, and is suitable for dynamic pressure testing.

★Pipeline pressure and explosion pressure measurement

★Wide frequency response and high stiffness

★Small size, light weight, easy to install

static indicator
Measuring range (peak value)	0-30MPa
Measuring range	0-30MPa
Sensitivity	100pC/MPa
Overload capacity	120%
nonlinear	<1%FS
Hysteresis	<1%FS
Repeatability	<1%FS
Insulation resistance	>10^13Ω
Capacitance (1000Hz)	~7pF
Dynamic indicators
Natural frequency	≥200 kHz
Operating temperature	-40°C~+150°C
Physical parameters
Housing material	High strength stainless steel
weight	11 g
Install	M10X1
Piezoelectric materials	quartz crystal
output method	M5
appendix
Sealing gasket	one
Cable	Double-ended M5 low-noise shielded cable 2 meters
