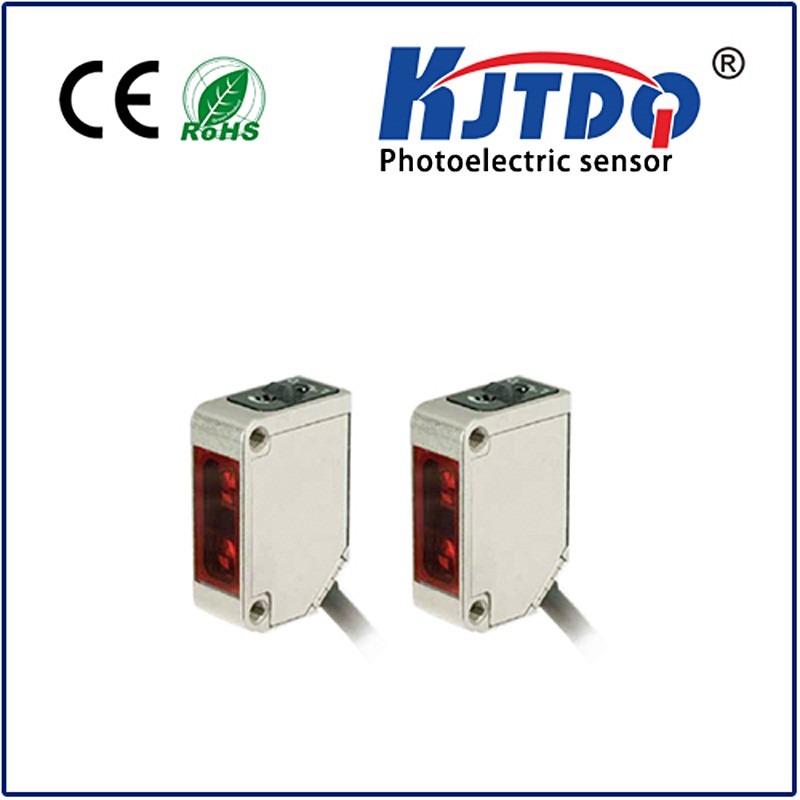

Thru-beam sensor (pair) equivalent to OBE40M-R201-S2EP-IO-V1-L

Photoelectric sensor

Thru-beam sensor (pair) equivalent to OBE40M-R201-S2EP-IO-V1-L

  • Medium design with versatile mounting options
  • DuraBeam Laser Sensors - durable and employable like an LED
  • IO-Link interface for service and process data
  • Various frequencies for avoiding mutual interference (cross-talk immunity)
  • Extended temperature range
    -40 °C ... 60 °C
  • High degree of protection IP69K
  • Product Detail

Datasheet excerpt: Technical data of  OBE40M-R201-S2EP-IO-V1-L

Product Description
Laser thru-beam sensor
System components
Emitter OBE40M-R201-S-IO-V1-L
Receiver OBE40M-R201-2EP-IO-V1-L
General specifications
Effective detection range 0 ... 40 m
Threshold detection range 50 m
Light source laser diode
Light type modulated visible red light
Laser nominal ratings
Note LASER LIGHT , DO NOT STARE INTO BEAM
Laser class 1
Wave length 680 nm
Beam divergence > 5 mrad ; d63 < 2 mm in the range of 250 mm ... 750 mm
Pulse length 1.6 µs
Repetition rate max. 17.6 kHz
max. pulse energy 9.6 nJ
Alignment aid LED red (in receiver lens)
illuminated constantly: beam is interrupted,
flashes: reaching switching point,
off: sufficient stability control
Diameter of the light spot approx. 80 mm at a distance of 40 m
Opening angle approx. 0.12 °
Ambient light limit EN 60947-5-2 : 40000 Lux
Functional safety related parameters
MTTFd 440 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 60 %
Indicators/operating means
Operation indicator LED green:
constantly on - power on
flashing (4Hz) - short circuit
flashing with short break (1 Hz) - IO-Link mode
Function indicator Yellow LED:
Permanently lit - light path clear
Permanently off - object detected
Flashing (4 Hz) - insufficient operating reserve
Control elements Receiver: light/dark switch
Control elements Receiver: sensitivity adjustment
Electrical specifications
Operating voltage 10 ... 30 V DC
Ripple max. 10 %
No-load supply current Emitter: ≤ 13 mA
Receiver: ≤ 15 mA at 24 V Operating voltage
Protection class III
Interface
Interface type IO-Link ( via C/Q = pin 4 )
IO-Link revision 1.1
Device profile Identification and diagnosis
Smart Sensor:
Receiver: type 2.4
Emitter: -
Device ID Emitter: 0x111412 (1119250)
Receiver: 0x111312 (1118994)
Transfer rate COM2 (38.4 kBit/s)
Min. cycle time 2.3 ms
Process data width Emitter:
Process data input: 0 bit
Process data output: 1 bit
Receiver:
Process data input: 2 bit
Process data output: 2 bit
SIO mode support yes
Compatible master port type A
Input
Test input emitter deactivation at +UB
Output
Switching type The switching type of the sensor is adjustable. The default setting is:
C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link
/Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
Signal output 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage max. 30 V DC
Switching current max. 100 mA , resistive load
Usage category DC-12 and DC-13
Voltage drop ≤ 1.5 V DC
Switching frequency 1250 Hz
Response time 0.4 ms
Conformity
Communication interface IEC 61131-9
Product standard EN 60947-5-2
Laser safety EN 60825-1:2014
Approvals and certificates
UL approval E87056 , cULus Listed , class 2 power supply , type rating 1
CCC approval CCC approval / marking not required for products rated ≤36 V
FDA approval IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Ambient conditions
Ambient temperature -40 ... 60 °C (-40 ... 140 °F)
Storage temperature -40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection IP67 / IP69 / IP69K
Connection 4-pin, M12 x 1 connector, 90° rotatable
Material
Housing PC (Polycarbonate)
Optical face PMMA
Mass Emitter: approx. 47 g receiver: approx. 47 g
Dimensions
Height 61.7 mm
Width 15 mm
Depth 41.7 mm

Classifications





System Classcode
ECLASS 13.0 27270901
ECLASS 12.0 27270901
ECLASS 11.0 27270901
ECLASS 10.0.1 27270901
ECLASS 9.0 27270901
ECLASS 8.0 27270901
ECLASS 5.1 27270901
ETIM 9.0 EC002716
ETIM 8.0 EC002716
ETIM 7.0 EC002716
ETIM 6.0 EC002716
ETIM 5.0 EC002716
UNSPSC 12.1 39121528
