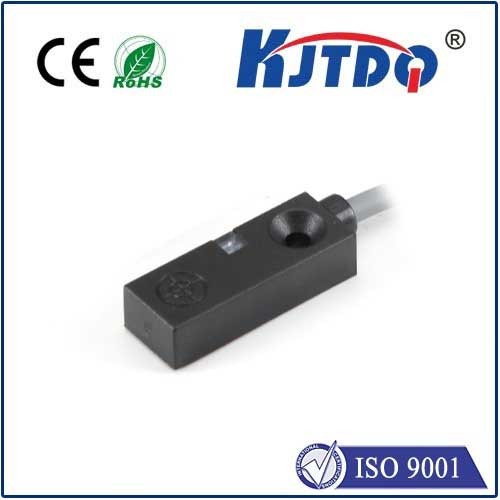

Y10 Square Proximity Sensor

Inductive proximity sensor

Y10 Square Proximity Sensor

  • Product Type:KJT-Y10S
  • Installation Method:Non-Flush
  • Detection Distance:2.5mm/4mm
  • Working Voltage:10-36VDC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PVC Cable
  • Product Detail

KJT square proximity switch, non-contact detection method, fast response and high frequency. A variety of specifications and sizes are available, and the product appearance can be customized.

●Can detect various metal objects DC 2 NO
● With surge, overload, short circuit and reverse polarity protection functions DC 2 NC
●Shell material:PC  DC 3 NPN NO
●Protection level: IP67(IEC) DC 3 NPN NC
●Ambient temperature: -25℃~+70℃ DC PNP NO

DC 3 PNP NC

--

--

1


Product number KJT-Y10S
Installation method Non-Flush
Detection distance 2.5mm/4mm
voltage 10…36VDC
output method NPN/PNP  NO/NC
Switch point offset ≤±10%
hysteresis range 1…20%
Repeat error ≤3%
Load current ≤200mA
Residual voltage ≤2.5V
Current consumption ≤10mA
protection circuit Surge, reverse polarity protection
Output instructions Red LED
ambient temperature -25…70℃
environment humidity 35-95%
On-off level 1000 Hz
Protection level IP67
Sensing surface material PC
Wiring 2M PVC Cable




外观尺寸

a7e87ddbe651f76c3f2e7571b6bee556
