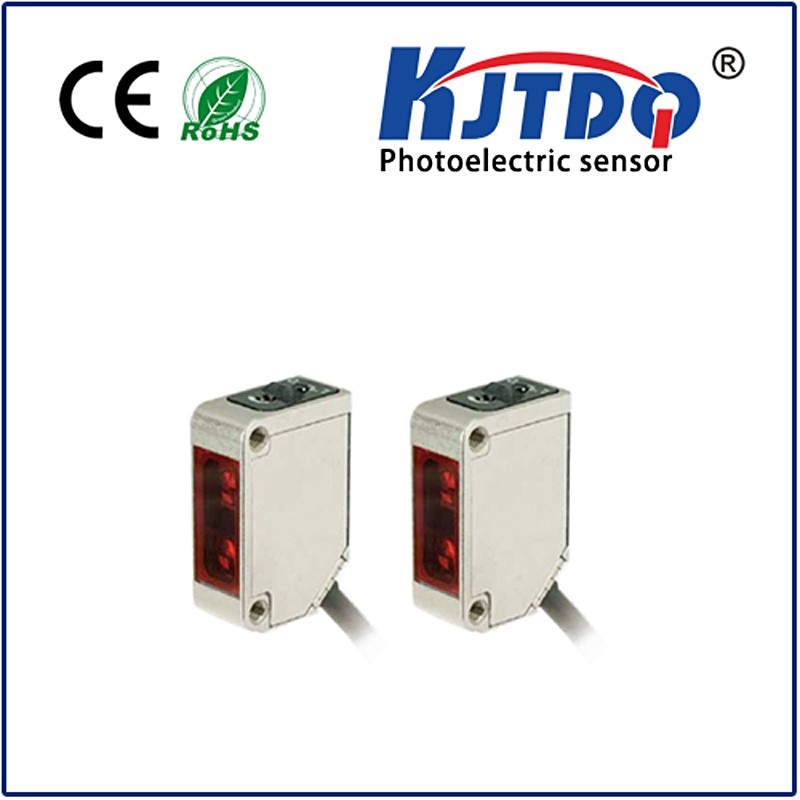

Datasheet excerpt: Technical data of OBE12M-R100-SE5F-IO-0,3M-V1
| System components | ||
|---|---|---|
| Emitter | OBE12M-R100-S-IO-0,3M-V1 | |
| Receiver | OBE12M-R100-E5F-IO-0,3M-V1 | |
| General specifications | ||
| Effective detection range | 0 ... 12 m | |
| Threshold detection range | 15 m | |
| Light source | LED | |
| Light type | modulated visible red light | |
| LED risk group labelling | exempt group | |
| Diameter of the light spot | approx. 65 mm at a distance of 1 m | |
| Opening angle | 3.7 ° | |
| Ambient light limit | EN 60947-5-2 : 30000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 462 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator |
LED green: constantly on - power on flashing (4Hz) - short circuit flashing with short break (1 Hz) - IO-Link mode |
|
| Function indicator |
Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve |
|
| Control elements | Receiver: light/dark switch | |
| Control elements | Receiver: sensitivity adjustment | |
| Parameterization indicator | IO link communication: green LED goes out briefly (1 Hz) | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current |
Emitter: ≤ 14 mA Receiver: ≤ 13 mA at 24 V supply voltage |
|
| Protection class | III | |
| Interface | ||
| Interface type | IO-Link ( via C/Q = pin 4 ) | |
| IO-Link revision | 1.1 | |
| Device ID |
Emitter: 0x110401 (1115137) Receiver: 0x11030B (1114891) |
|
| Transfer rate | COM2 (38.4 kBit/s) | |
| Min. cycle time | 2.3 ms | |
| Process data width |
Emitter: Process data output: 2 Bit Receiver: Process data input: 2 Bit Process data output: 2 Bit |
|
| SIO mode support | yes | |
| Compatible master port type | A | |
| Input | ||
| Test input | emitter deactivation at +UB | |
| Output | ||
| Stability alarm output |
1 PNP, inactive when level falls below function reserve after approx. 5 s. Immediately inactive if the beam is interrupted 4 times during the flashtime. |
|
| Switching type |
The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: PNP normally open / dark-on, IO-Link Alarm output - Pin2: PNP normally closed |
|
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Usage category | DC-12 and DC-13 | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Communication interface | IEC 61131-9 | |
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature |
-40 ... 60 °C (-40 ... 140 °F) , cable, fixed installation -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains |
|
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 / IP69 / IP69K | |
| Connection | 300 mm fixed cable with M12 x 1, 4-pin connector | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Mass | Emitter: approx. 10 g receiver: approx. 10 g | |
| Dimensions | ||
| Height | 37.1 mm | |
| Width | 11 mm | |
| Depth | 21.5 mm | |
| Cable length | 0.3 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
