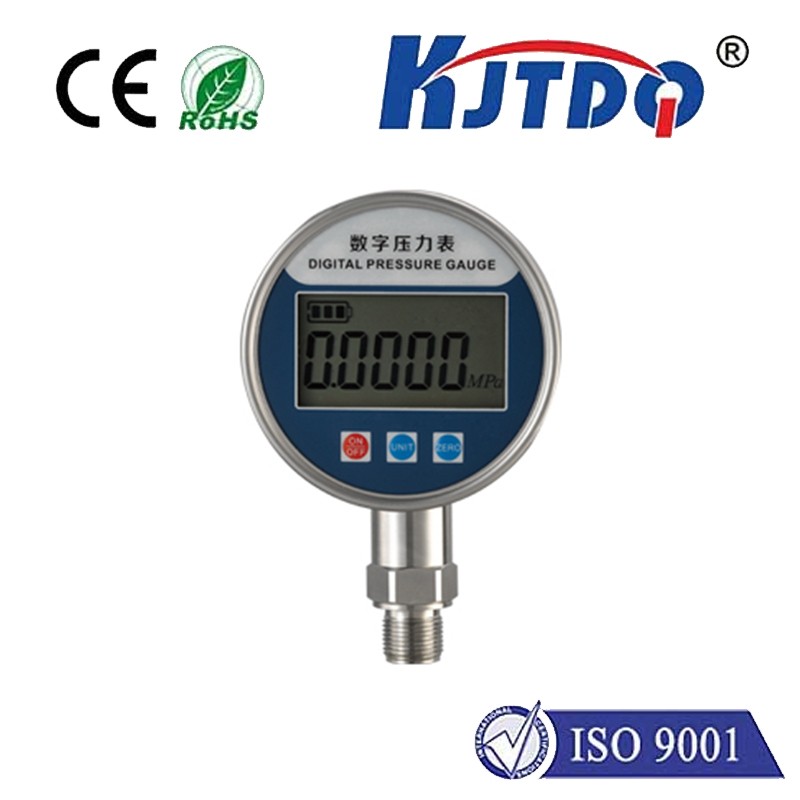

KJT- T200 Digital Pressure Gauge

Products

KJT- T200 Digital Pressure Gauge

  • model number:KJT- T200
  • pressure range:0- 100MPa....1.6、 2.5、60MPa
  • mounting interface:M20x1.5, G1/2, G1/4, etc.
  • demonstrate:5-digit LCD display
  • sizes:Diameter φ100mm, thickness 48mm
  • electricity supply:3V (two five batteries) five units free switching, can be a key to clear the zero.
  • Product Detail

1

KJT- T200 stainless steel digital pressure gauge adopts metal stainless steel shell, beautiful appearance, durable, using two section 5 battery power supply, can be used continuously for more than a year, is a set of pressure, measurement, display as one of the high-precision, low-power digital pressure gauge, with anti-vibration, high display accuracy, long service life, automatic standby and so on, easy to use, can be used instead of the mechanical pressure gauge for portable pressure measurement, equipment supporting, standard pressure calibration equipment and so on. It can replace mechanical pressure gauge, used in portable pressure measurement, equipment supporting, standard pressure calibration equipment and so on. It can be used in portable pressure measurement, equipment supporting, standard pressure calibration equipment and so on.


universal suffrage clarification
KJT- T200

clamshell ZT axis
0 radial direction
Accuracy Class 1 0.4%
2 0.2%



process connection

A 20*1.5
B G1/2
C G1/4
D Other orders are specified
Power supply method W Battery operated 2 x 5
Measurement range -100kPa--60MPa Customer Choice



t2001
