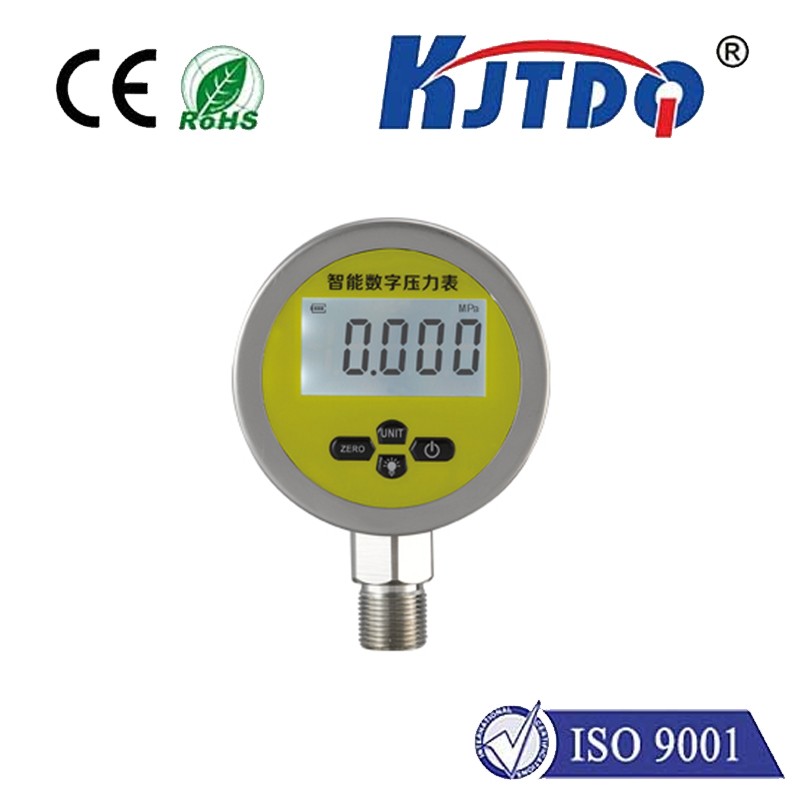

KJT- T1600 Digital Pressure Gauge

Products

KJT- T1600 Digital Pressure Gauge

  • pressure range:0-100MP....1.6. 2.5、60MPa
  • mounting interface:M20x1.5, G1/2, G1/4, etc.
  • demonstrate:4-digit LCD display
  • sizes:Diameter φ80mm, thickness 48mm
  • electricity supply:3V (two 7 batteries) five units free switching, can be a key to clear the backlight.
  • Product Detail

1

KJT- T1600 stainless steel digital pressure gauge adopts metal stainless steel shell, beautiful appearance, durable, using two section 5 battery power supply, can be used continuously for more than a year, is a set of pressure, measurement, display as one of the high-precision and low-power digital pressure gauge, with anti-vibration, high display accuracy, long service life, automatic standby and so on, easy to use, can be used in place of the mechanical pressure gauge for portable pressure measurement, equipment supporting, standard pressure calibration equipment, etc.. It can replace the mechanical pressure gauge and be used for portable pressure measurement, equipment supporting, standard pressure calibration equipment, etc. Wide range of applications.

universal suffrage clarification
KJT- T1600
Intelligent Digital Pressure Gauge
clamshell A Plastic Engineering Housings
B Stainless steel 304 housing
Accuracy Class 1 0.5%
2 1%
process connection A 20*1.5
B G1/2
C G1/4
D Other orders are specified
Power supply method W battery powered
Measurement range -100kPa--60MPa Customer Choice



22


KJT- T1600数字压力表



11
