KJT-L1220AU Axial Intelligent Digital Pressure Controller

Products

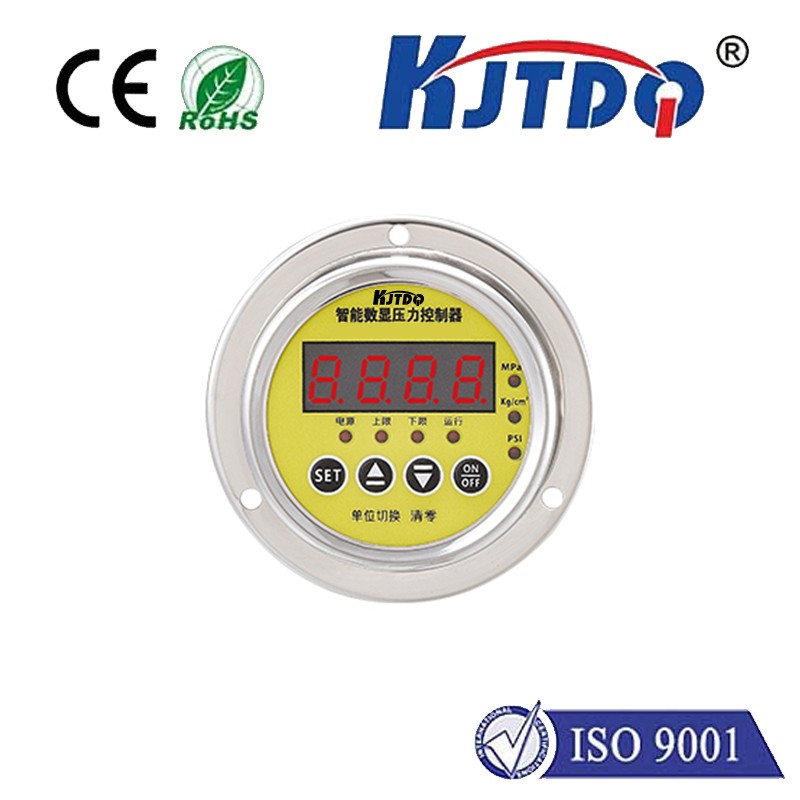

KJT-L1220AU Axial Intelligent Digital Pressure Controller

  • Overload capacity:150%
  • Sampling rate: 5 times/second
  • Measuring medium:304 stainless steel compatible media
  • Accuracy level:1%FS or 0.5%FS
  • Operating temperature:-20-80℃
  • Alarm point:Full range arbitrarily set
  • load capacity:380V/3A、 220V/5A、24V/5A
  • Display method:High brightness LED digital tube
  • output signal:Passive switching value 4-20mA
  • Product Detail

1

KJT-L1220AU intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure detection and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.




Type Product Description
KJT-L1220AU
Axial Intelligent Digital Pressure Controller
output method 1220AU Single relay output
2 NO
3
NO+NC
Transmission output 0 No output
2 4-20mAoutput
Accuracy level 1 1%
2 0.5%
process connection A 20*1.5
B G1/2
C G1/4
D Other orders are specified
Power supply W DC24Vbattery powered
A
AC220Vpower supply
Measuring range -100kPa-60MPa Customer choice


2
