KJT-L202 Intelligent Digital Pressure Controller

Products

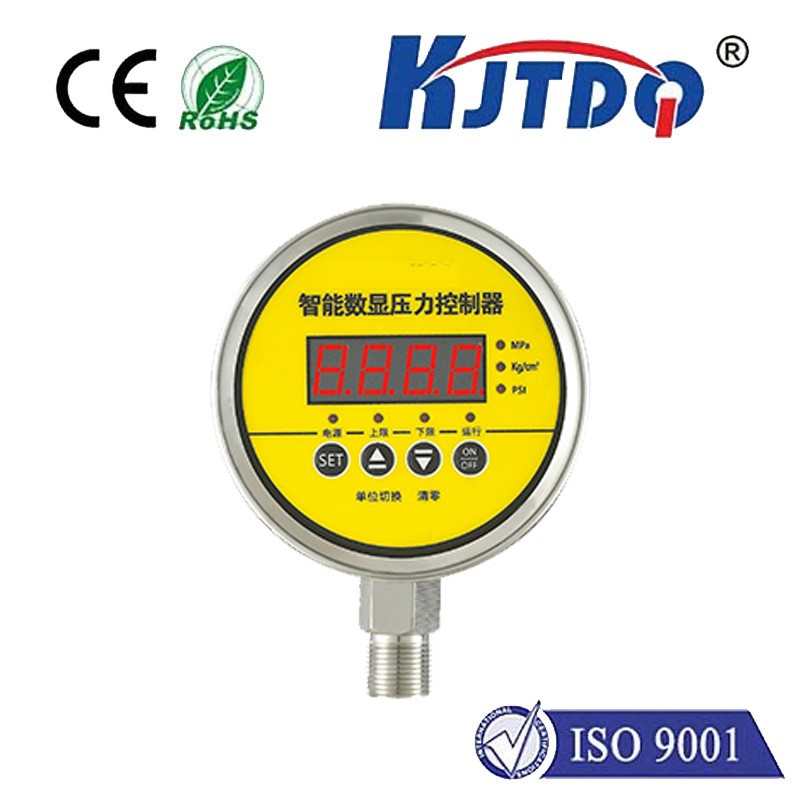

KJT-L202 Intelligent Digital Pressure Controller

  • Overload capacity:150%
  • Sampling rate: 5 times/second
  • Measuring medium:304 stainless steel compatible media
  • Accuracy level:1%FS or 0.5%FS
  • Operating temperature:-20-80℃
  • Alarm point:Full range arbitrarily set
  • load capacity:380V/3A、 220V/5A、24V/5A
  • Display method:High brightness LED digital tube
  • output signal:Passive switching value 4-20mA
  • Product Detail

1

KJT-L202 intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, pressure leakage protection, password protection, automatic pressure check and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.




Type Product Description
KJT-ZL1220AU
Intelligent digital pressure controller
output method 202 Single relay output
2 NO
3
NO+NC
Transmission output 0 No output
2 4-20mA output
Accuracy level 1 1%
2 0.5%
process connection A 20*1.5
B G1/2
C G1/4
D Other orders are specified
Power supply W DC24V battery powered
A
AC220V power supply
Measuring range -100kPa-60MPa Customer choice
