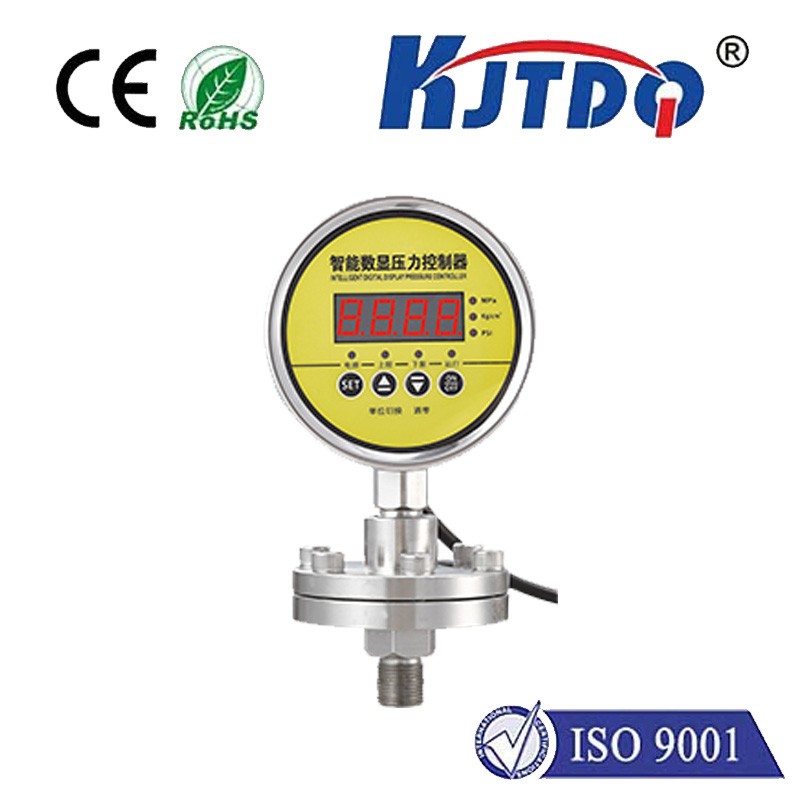

KJT-L204H Intelligent High Temperature Digital Pressure Controller

Products

KJT-L204H Intelligent High Temperature Digital Pressure Controller

  • Overload capacity:150%
  • Sampling rate: 5 times/second
  • Measuring medium:304 stainless steel compatible media
  • Accuracy level:1%FS or 0.5%FS
  • Operating temperature:-20-80℃
  • Alarm point:-20-80℃
  • load capacity:380V/3A、 220V/5A、24V/5A
  • Display method:High brightness LED digital tube
  • output signal:Passive switching value 4-20mA
  • Product Detail

1

KJT-L204H Intelligent Digital Pressure Controller can realize the control function of low pressure stop, high pressure start or low pressure start, high pressure stop Controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, pressure leakage protection, password protection, automatic pressure check and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.


Type Product Description
output method 204H Dual Relay Outputs
2 NO
3
NO+NC
Transmission output 0 No output
2 4-20mA output
Accuracy level 1 1%
2 0.5%
process connection A 20*1.5
B G1/2
C G1/4
D Other orders are specified
Power supply W DC24V battery powered
A
AC220V power supply
B AC380V power supply
Measuring range -100kPa-60MPa Customer choice


2

KJT-L204 Intelligent Digital Pressure Controller

3

2

4


12 (1)
