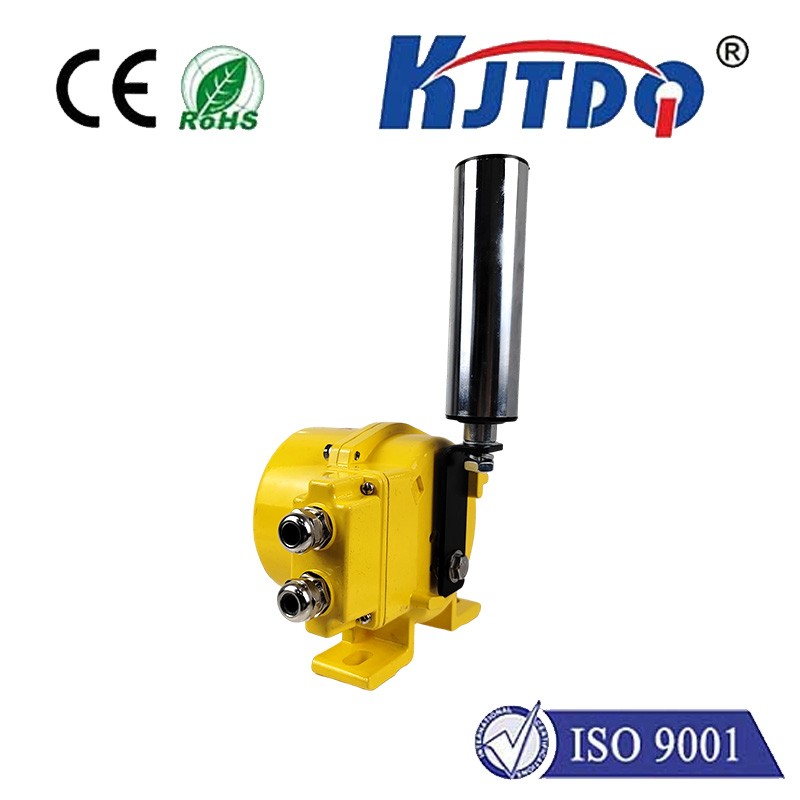

KJT-LS type address code explosion-proof pull rope switch is widely used in steel, cement, power plants, mines and other factories and mines with belt conveyors. This product is installed on both sides of the belt conveyor and is used for belt conveyor emergencies. A protective switch for shutting down. Pull the wire rope at any point within the operating distance of the switch to cut off the operating circuit and shut down the entire line to protect the safety of the tape machine and people.

  working principle:

          When an emergency occurs at the tape transportation site, pulling the wire rope tied to the lifting eye is the action of the slider and switch in the machine, which sends a shutdown signal. The switch automatically resets after releasing the wire rope.

●The switch must be balanced and pressed on the fixed bracket of the rack;

●Tie the steel wire rope to the pull rings at both ends, and the rope on each side should not exceed 40m (it should be shortened when there is a slope);

●The pressure on the pull rope should be appropriate to ensure reliable reset of the switch;

●The drawstring is set parallel to the tape, and a lifting ring is added every 10m.

●The factory can purchase steel wire ropes according to the specifications required by users.

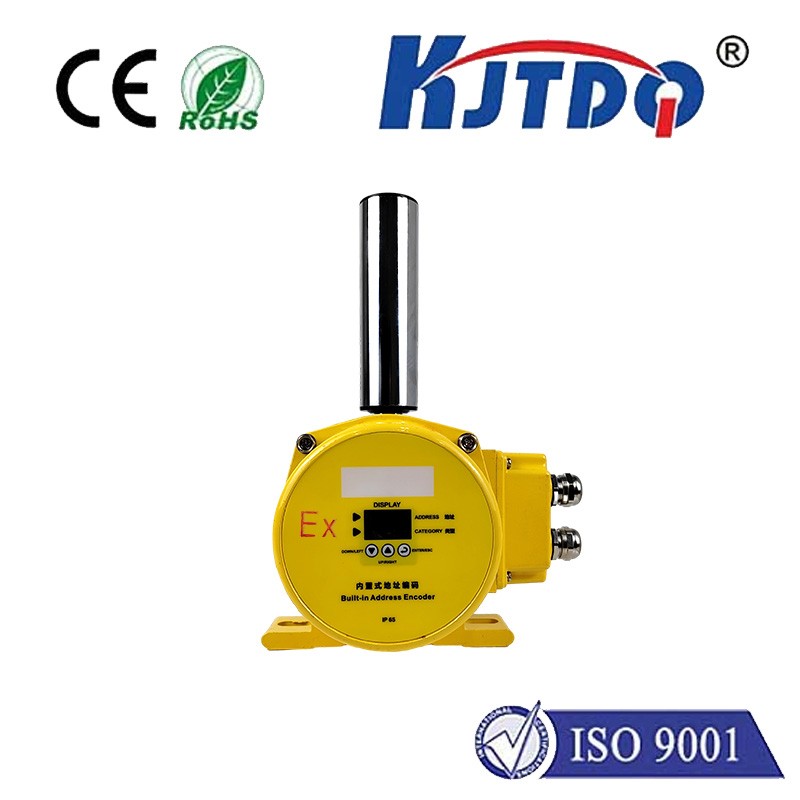

The address encoder uses a self-designed protocol to provide an RS485 communication interface to connect to the comprehensive protection instrument. By using shielded twisted pairs and communication repeaters, the transmission distance can reach 1km.

GROUP	TERMINAL	WIRING INSTRUCTIONS
AC 220V	L	L/N IS CONNECTED TO AC 220V POWER SUPPLY TO POWER THE ADDRESS ENCODER.L AND N ARE RESPECTIVELY EQUIPPED WITH TWO INPUT INTERFACESBOTH OF WHICH CAN BE USED.
	N
INPUT 2 HARDCONTACT	COM2	HARD CONTACT COMMON TERMINAL
	NC2	HARD CONTACT NORMALLY CLOSED POINT
	NO2	HARD CONTACT NORMALLY OPEN POINT
RS485	A	A&B ARE RESPECTIVELY CONNECTED TO RS485 SIGNAL LINES AND CONNECTED TO A&B ON THE COMPREHENSIVE INSUR- ANCE INSTRUMENT THROUGH THE COMMUNICATION BUS.
	B
