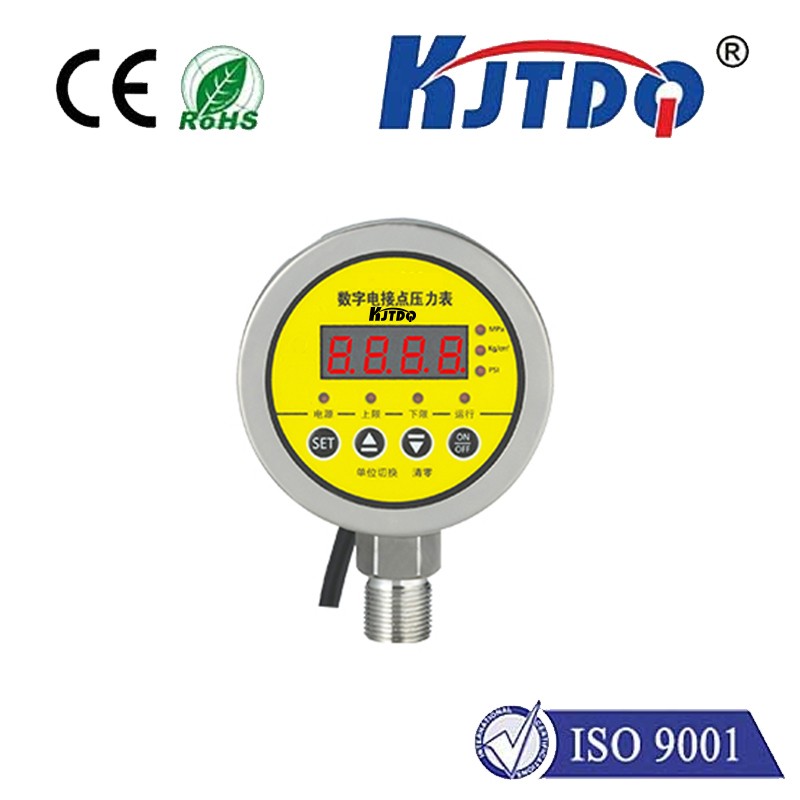

KJT-Z1620C stainless steel digital pressure gauge adopts metal stainless steel shell, beautiful appearance, sturdy and durable. It is powered by two AA batteries and can be used continuously for more than one year. It is a high-precision and low-power digital pressure gauge that integrates pressure, measurement and display. The pressure gauge has the characteristics of anti-vibration, high display accuracy, long service life, automatic standby, etc. It is easy to use and can replace mechanical pressure gauges for portable pressure measurement, equipment matching, standard pressure calibration equipment, etc. Wide range of applications.
|
Type |
Product Description | |
| KJT-Z1620C |
|
Digital electrical contact pressure gauge |
| output method | 1620 | Single relay output |
| 2 | Normally open | |
|
3 |
NO+NC |
|
| Communication output | 0 | No communication output |
| 8 | RS485 communication output | |
| Accuracy level | 1 | 1％ |
| 2 | 0.5％ | |
| process connection | A | 20*1.5 |
| B | G1/2 | |
| C | G1/4 | |
| D |
|
|
| Power supply | W | DC24V battery powered |
|
A |
AC220V power supply | |
| B | AC380V power supply | |
| Measuring range | -100kPa-60MPa | Customer choice |
