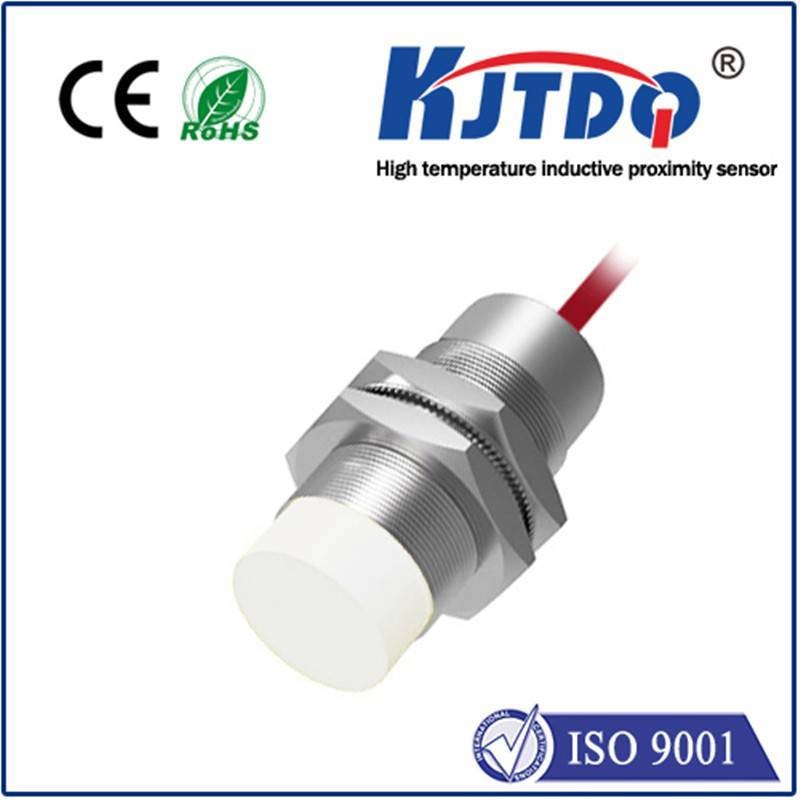

M30 high temperature proximity sensor unshielded AC NO NC size J30*55mm

High temperature proximity sensor

M30 high temperature proximity sensor unshielded AC NO NC size J30*55mm

Trade TermsFOB Nanjing/Shanghai

Payment TermsT/T, Western Union, PayPal

Delivery Time3-15 working days for making sample. 7-20 working days for production.

PackingStandard Export Cartons

ShippingBy sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ5PCS

Place of OriginNanjing City, Jiangsu Province, China

CertificateCE,RoHS,ISO9001

  • Product Detail

INDUCTIVE PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.


Technical parameter
Size J30*55mm
Mounting Unshielded
Sensing Distance SN [mm] 15mm
Housing material Brass nickel plated
Indicator With LED
Operating voltage 90-250VAC
Output NO/NC
Ripple <1.8mA
No Load Current 5A(20ms)
Max.Load Current 400mA
Leakage Current <1.8mA
Voltage Drop <8V
Switching Frequency 100 Hz
Response Time 10ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5%(Sr)
Protection Degree IP67
Operating Temperature -25℃-+70℃
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 400mA
Connection 2 M teflon cable/silicon cable

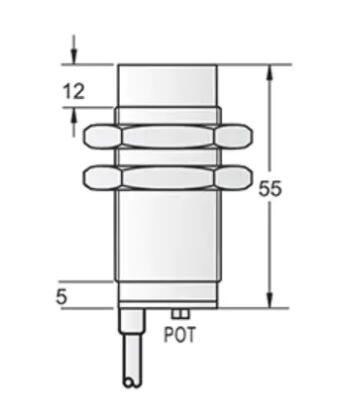

Product Size

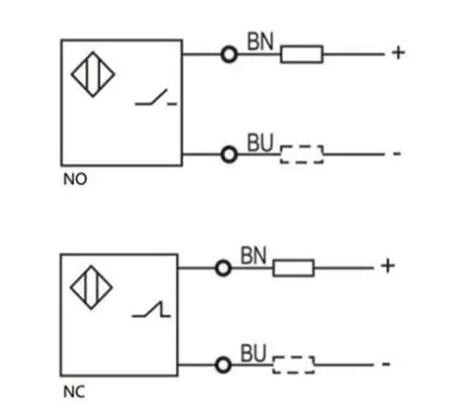

Wiring diagram






PREVIOUS:M30 high temperature proximity sensor shielded NO NC -25℃-+120℃

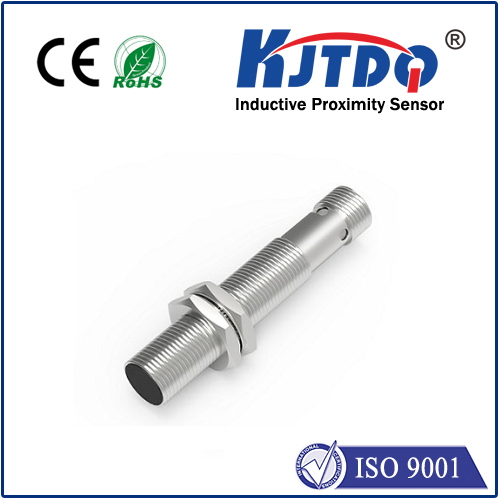

NEXT:Inductive sensor NBB2-12GM40-Z0-V1
