Features:



1) Note: Customize for cable length, sensing distance ,housing material and shape.

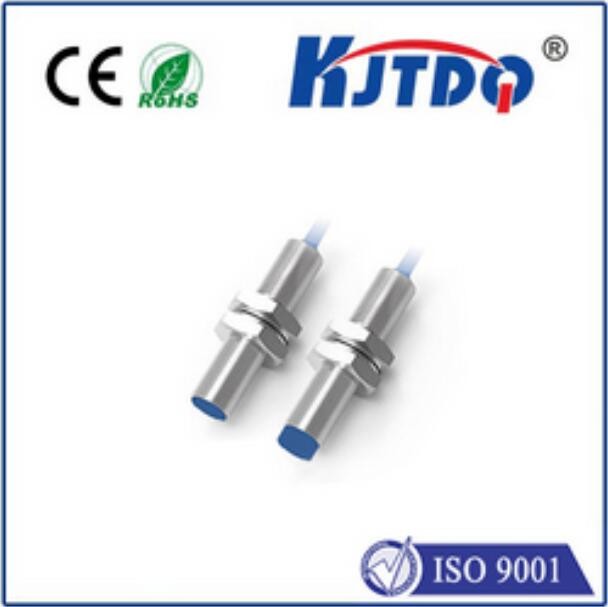

     Metal cylindrical inductive sensor

2) Compact volume

3) High repeat orientation precision

4) Small volume for narrow space

5) Strong protection distribution

6) Vibration-proof, waterproof and oil-proof

7) With short-circuit protection and inverted connecting protection

8) Service life up to one million

9) Adopts envelop glue, temperature resist, oil-proof colophony in it
Products Advantage:
1. Non-contact, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4 to M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.

Model-                          KJT-NJK8

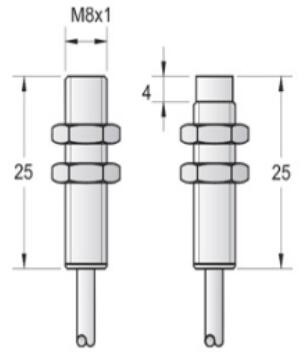

 Specification(mm)  -             M8*1*25

 Mounting  -                     Flushed/Non-flushed

 Sensing distance  -                  1mm/ 2mm

 Supply voltage-                     8.2VDC

 Output-                             NAMUR

 Return difference  -                  1-20%

 Repeated accuracy  -                <3%

 Frequency-                          2000Hz/ 2000Hz

 Output display-   /

 Polarity protection-    /

 Insulation pressure resistance  -       500 V/AC,50/60Hz,60s

 Short-circuit protection-     /

 Ambient temperature-                -25~+70℃

 Ambient humidity-                    35~95%

 Protection degree-                    IP67

 Housing material-                     brass nickel plated

 Connection-                          2m PVC Cable

 Certification-                          CE
