INDUCTIVE PROXIMITY SENSOR
KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.
Technical parameter
Sensing Distance SN [mm]
2mm
Housing material
ABS
Operating voltage
10-36VDC
Current consumption
<10mA
Load current
<100mA
Output
PNP/NPN NO/NC
Hysteresis
2% sensing distance
Response frequency
600Hz
Residual voltage
<1.0VDC Load current 100mA
Leak current
<0.01mA
Operating Temperature
-25℃~+70℃
Operating humidity
35%~85% HR relative humidity
Protection Degree
IP67
Connection
PVC Cable 2M

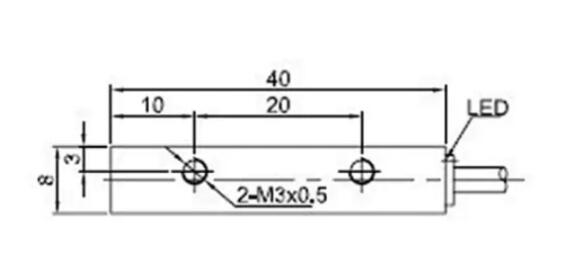

Product Size

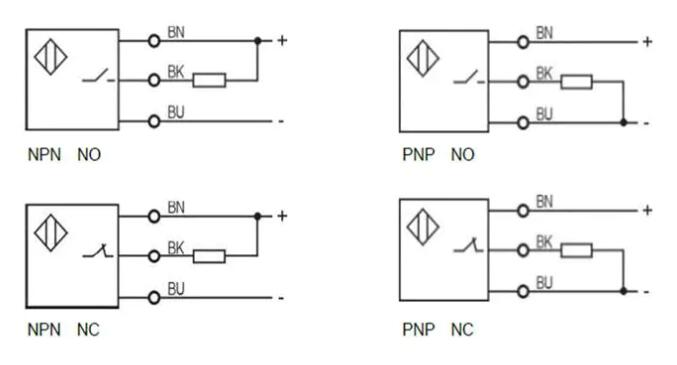

Wiring diagram
