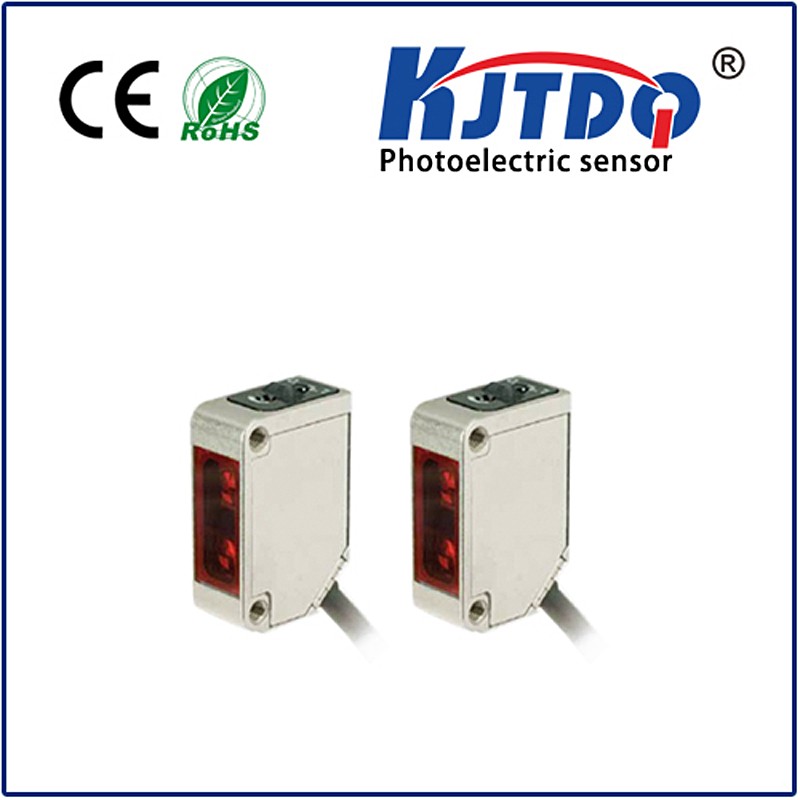

Thru-beam sensor (pair) equivalent to M100/MV100-RT/76a/95/103

Square type Photoelectric sensor

Thru-beam sensor (pair) equivalent to M100/MV100-RT/76a/95/103

  • Miniature design
  • Easy to use
  • Very bright, highly visible light spot
  • Full metal thread mounting
  • Highly visible LEDs for Power ON and switching state
  • Not sensitive to ambient light
  • Product Detail

Datasheet excerpt: Technical data of  M100/MV100-RT/76a/95/103

Product Description
Thru-beam sensor, 10 m detection range, red light, light/dark on, DC version, PNP output, sensitivity adjuster, emitter switch-off, M8 plug
System components
Emitter M100-RT/76a/95
Receiver MV100-RT/95/103
General specifications
Effective detection range 0 ... 10 m
Threshold detection range 15 m
Light source LED
Light type modulated visible red light
Diameter of the light spot approx. 1 m at a distance of 15 m
Opening angle approx. 2 °
Optical face frontal
Ambient light limit EN 60947-5-2
Functional safety related parameters
MTTFd 860 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Operation indicator LED green: power on
Function indicator Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted
Control elements sensitivity adjustment
Control elements Light-on/dark-on changeover switch
Electrical specifications
Operating voltage 10 ... 30 V DC
Ripple max. 10 %
No-load supply current Emitter: ≤ 15 mA
Receiver: ≤ 8 mA
Input
Test input emitter deactivation at +UB
Output
Switching type The switching type of the sensor is adjustable. The default setting is: light-on
Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA , resistive load
Voltage drop ≤ 1.5 V DC
Switching frequency 1000 Hz
Response time 0.5 ms
Conformity
Product standard EN 60947-5-2
Approvals and certificates
UL approval cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -30 ... 60 °C (-22 ... 140 °F)
Storage temperature -40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection IP67
Connection M8 x 1 connector, 4-pin
Material
Housing PC (Polycarbonate)
Optical face PMMA
Mass approx. 20 g (emitter and receiver)
Tightening torque, fastening screws 0.6 Nm
Dimensions
Height 31 mm
Width 11 mm
Depth 20 mm

Classifications





System Classcode
ECLASS 13.0 27270901
ECLASS 12.0 27270901
ECLASS 11.0 27270901
ECLASS 10.0.1 27270901
ECLASS 9.0 27270901
ECLASS 8.0 27270901
ECLASS 5.1 27270901
ETIM 9.0 EC002716
ETIM 8.0 EC002716
ETIM 7.0 EC002716
ETIM 6.0 EC002716
ETIM 5.0 EC002716
UNSPSC 12.1 39121528
