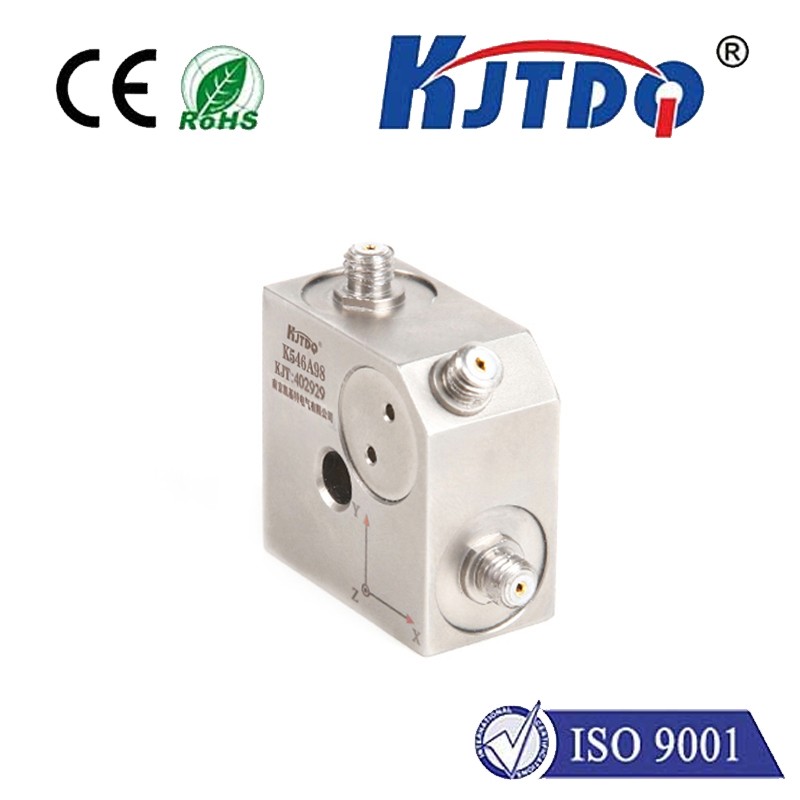

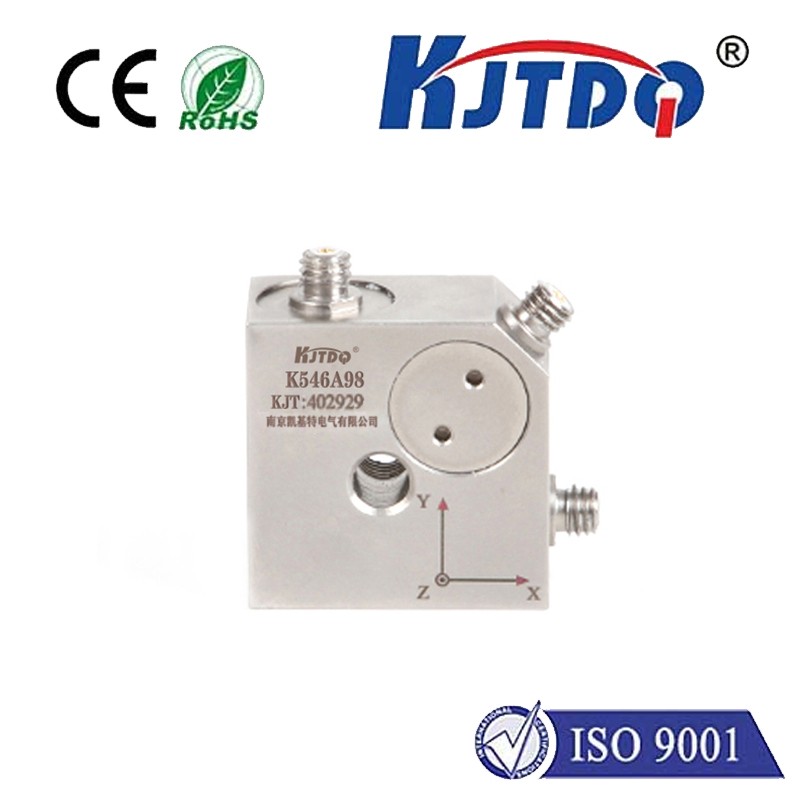

Universal acceleration sensor K546A98

Products

Universal acceleration sensor K546A98

  • Product Series:Universal acceleration sensor K546A98
  • Then the amount range (peak value):±1000g
  • Sensitivity(25℃):20pC/g
  • Frequency response (±1dB):1-4,000 Hz
  • Installation resonant frequency:≥12,000 Hz
  • Lateral sensitivity ratio:≤5%
  • Insulation resistance:>10^9 Ω
  • Operating temperature:-54℃~+150℃
  • Impact limit (peak value):±1000 g
  • Dimensions:27mm x 27mm x 14.5mm
  • Housing material:Titanium alloy
  • output method:3-M5
  • Installation method:φ5 through hole (Z) 2-M5 (X, Y)
  • Product Detail

 The universal three-axis charge type uses piezoelectric ceramics as the sensitive material. It has a wide frequency response and a small manufacturing volume. It can simultaneously measure acceleration signals in the three axes of X, Y, and Z. It is suitable for vibrations such as modal analysis, motors and pumps, and finishing machining. Testing occasions.


1

Dynamic Characteristics

Measuring range (peak value)

±1000g
Sensitivity(25℃) 20Pc/g
Frequency response (±1dB) 1-4000Hz
Installation resonant frequency ≥12000Hz
Lateral sensitivity ratio ≤5%
Insulation resistance >10^9 Ω
Excitation voltage 18-28VDC(A constant current source)
Constant current source excitation (mA) 2-10mA
Output impedance <100Ω
Full scale output (peak value) ±5V
bias voltage +9V~+12V
Install ground insulatio >10^8Ω
Operating temperature -54℃~+150℃
Impact limit (peak value) ±1000g
Dimensions 27mm *27mm*14.5mm
Housing material Titanium alloy
output method 3-M5
Installation method φ5 through hole (Z) 2-M5 (X, Y)
weight 50g
structure type Ceramic shear
Appendix
mounting bolts M5 hexagon socket bolt, M5
cable D01-2米


16GAI

2


3

7GAI

4
