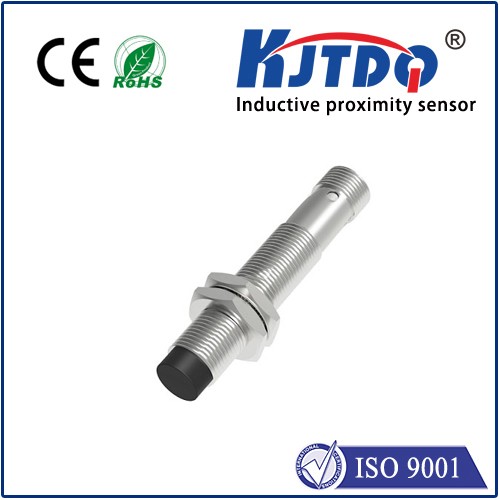

Inductive sensor NRN10-12GS40-E2-V1

Inductive proximity sensor

Inductive sensor NRN10-12GS40-E2-V1

  • Reduction factor = 1
  • Magnetic field resistant
  • Stainless steel housing
  • Product Detail

Datasheet excerpt: Technical data of  NRN10-12GS40-E2-V1

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 10 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 8.1 mm
Reduction factor rAl 1
Reduction factor rCu 1
Reduction factor r304 1
Reduction factor rSt37 1
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 1500 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Rated insulation voltage 60 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current ≤ 14 mA
Time delay before availability max. 15 ms
Constant magnetic field 200 mT
Alternating magnetic field 200 mT
Switching state indicator Multihole-LED, yellow
Functional safety related parameters
MTTFd 1393 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
Protection class II
Rated insulation voltage 60 V
Rated impulse withstand voltage 800 V
UL approval cULus Listed, General Purpose
Class 2 power source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 4-pin
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PBT
Degree of protection IP67
Mass 15 g
Dimensions
Length 55 mm
Diameter 12 mm
General information
Scope of delivery 2 self locking nuts in scope of delivery

Classifications






System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
